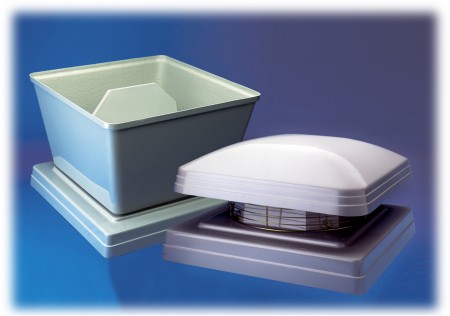

Axial Roof Fans
- RMA - 12 sizes from 200mm to 1000mm
- RMA - Airflow from 610 to 45,000 m3/hr
- RV - 7 sizes from 400mm to 800mm
- RV - Airflow from 4,390 to 32,900 m3/hr
Both RMA and RV have low noise levels combined with high efficiency
General
RA
- Glass fibre, weatherproof cowl and base
- Blade in reinforced polypropylene
- Blade hub in die-cast aluminium
- Also available:
- Speed Controllers
- Soaker Sheets
- Purlin Boxes
- Optional flameproof models, ATEX rated, supplied with test certificate
RV
- Glass fibre, weather proof funnel and base
- Blade in reinforced polypropylene
- Blade hub in die-cast aluminium
- Complete with backdraught shutter
- Also available:
- Speed Controllers
- Full range of Accessories
- “RVHT” Emergency Smoke Extract (“Smokex”®) version with
- Robust steel casing
- Fans in resilient epoxy paint finish
- Galvanised steel base and funnel
- Weatherproof shutters in galvanised steel
- (see full details in “Smokex” leaflet)
Back to top
Specification
RA
- Class ‘F’ motor insulation
- Suitable for operation in air temperatures between -20oC to +60oC
- IP55 Protection
RV
- Class ‘F’ motor insulation
- Suitable in air temperatures between -20oC to +60oC
- IP55 Protection
Back to top
Range
RMA204 RMA254 RMA314 RMA354 RMA404 RMA454 RMA504 RMA506 RMA564 RMA566 RMA634 RMA636 RMA714 RMA716 RMA804A/B RMA806 RMA1004A/B RMA1006
RV404 RV454 RV504 RV506 RV564 RV566
RV634 RV636 RV714 RV716 RV804A RV804B RV806RV404 RV454 RV504 RV506 RV564 RV566 RV634 RV636 RV714 RV716 RV804A RV804B RV806
