Heat Recovery Belt Driven

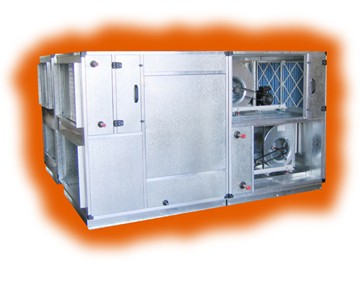

Vectaire's comprehensive and extensive range of Heat Recovery Units direct drive and belt driven models for plant-room and roof installation are able to deliver up to 2.0 m3/sec ensuring that any installation requirement can be met. Additionally, Vectaire can custom build units with a capacity of up to 12.0 m3/sec.
General
Features - Plant Models
- 2 models
- airflow to 2.0 m3/sec
- wide selection of control panels available
- EB or LPHW
- latent heat exchange with complete separation of supply and exhaust air flows - no cross contamination
- inlets and outlets fitted with "Mez" type duct connecting flanges
- rigid casing construction
- casing can be powder coated to any BS or RAL colour
- panel filters fit into slide-in channels
- filter access doors are fitted with quarter turn fasteners - all other removable panels are retained via set screws fitted with weather caps
Additional Features - Weatherproof Models
- 2 models
- air inlets on external units protected by weather proof cowl and bird guard
- roof mounted units with plastisol exterior in light grey to BS10A05
Back to top
Specification
- units are finished in galvanised, double skinned steel with 25mm thick mineral wool slab insulation of 45kg/m3 density (providing high degree of acoustic insulation) (high density mineral wool and barrier matt or plaster board also available for reduced noise breakout)
- fans are belt drive double inlet, double width, forward curved centrifugal type, mounted on integral anti-vibration mounts
- motors - with thermal cut-out protection and a transit bolt fitted to avoid damage in transit
- cross flow plate heat exchangers are 100% composite construction with efficiencies from 50%. Profiled aerofoil inlets and exits ensure minimum pressure drop and even air distribution. Up to 95% recycled material used in construction - they are 100% recyclable.
- electric heater batteries for 1ph and 3ph operation are manufactured from sheathed rod elements with an integral, manual reset thermal cut-out for wiring into control unit
- maximum air temperature 50OC
- panel filters manufactured from reinforced non-woven media with metal support grid to G4 grade, fitted as standard in easily removable housings. Higher degree of filtration can be provided on request
Back to top
