Vectaire

Ventilation specialist

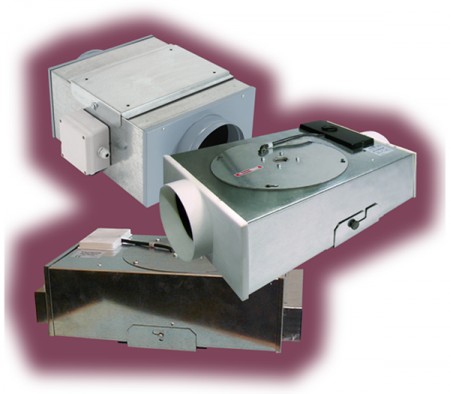

Microbox

  • Ultra-slim - from 122mm deep
  • High pressure centrifugal fans for continuous ventilation
  • 4 trickle speed options with boost override
  • For ceiling void, roof or cupboard installation
  • Ideal for flats and apartments
  • 6 models
  • 4 capacities for dwellings to 400m2
  • Integral overrun timer
  • BRE Digest 398 Compliant
  • Exceeds Building Regulations requirements including new Document F)

General

  • high pressure centrifugal fan
  • ceiling void, roof or cupboard mounted to provide balanced extract system
  • 4 capacities for dwellings to 400m2
  • complete with mounting bracket and anti-vibration plate
  • choice of 4 lower speeds on nstallation
  • 2 operating speeds - continuous running at low speed - can be switched to higher speed when desired
  • integral overrun timer
  • controls condensation
  • extremely quiet operation
  • silencers (SBSIL) and air filter cassettes (SBFIL) available
  • boost speed can be triggered by:
    • PIR (passive infra red)
    • DRH (Dynamic Remote Humidistat)
    • THM (Thermostat)
    • Remote Switch


Back to top

Specification

  • splashproof to IPX4
  • steel cabinet
  • acoustically lined - sound levels as low as 21db(A)
  • service and maintenance panel easily accessible
  • trickle speed selection switch on cabinet exterior
  • thermal overload protection
  • spigots allow easy and secure duct fixing
  • can be installed against wall or on its side


Back to top

Compliance

  • EN60335-2-80
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked
  • BRE Digest 398 Compliant


Back to top

Range

  • MBOX 204/2 - 204mm x 60mm for dwellings up to 66m2
  • MBOX 100/2 - 4"/100mm for dwellings up to 66m2
  • MBOX 125/2 - 5"/120mm for dwellings up to 66m2
  • MBOX 125/2Plus - 5"/120mm for dwellings from 40m2 to 100m2
  • MBOX 150/2 - 6"/150mm for dwellings from 75m2 to 140m2
  • MBOX 200/2 - 8"/200mm for dwellings from 120m2 to 400m2


Back to top

Features

*Rectangular spigot option

Back to top

Installation

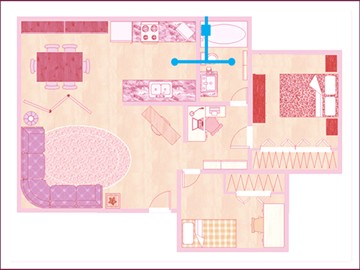

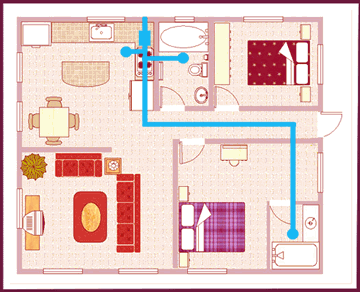

*Duct Run Comparison - Vectaire*Duct Run Comparison - Others*Example - 1*Example - 2

Back to top

Wiring

*Standard*With Triggers

Back to top

Pressure

*MBOX 204/2*MBOX 100/2*MBOX 125/2*MBOX 125/2 Plus*MBOX 150/2 *MBOX 200/2

Back to top

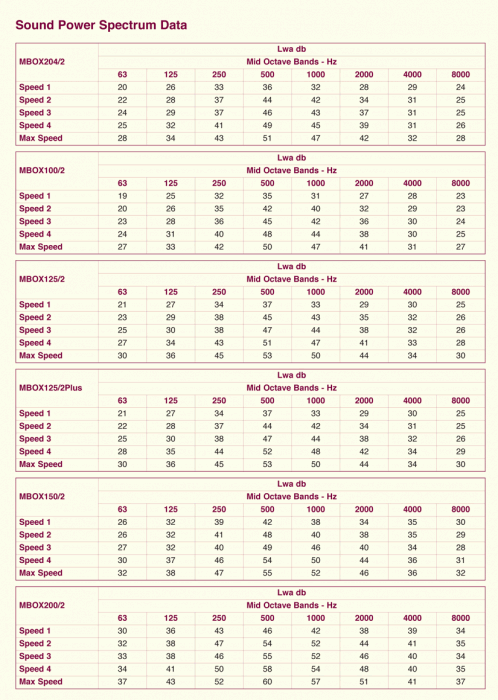

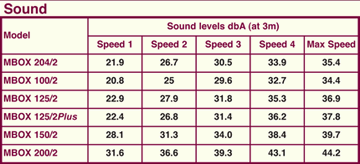

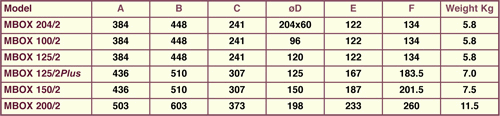

Dimensions

**

Back to top

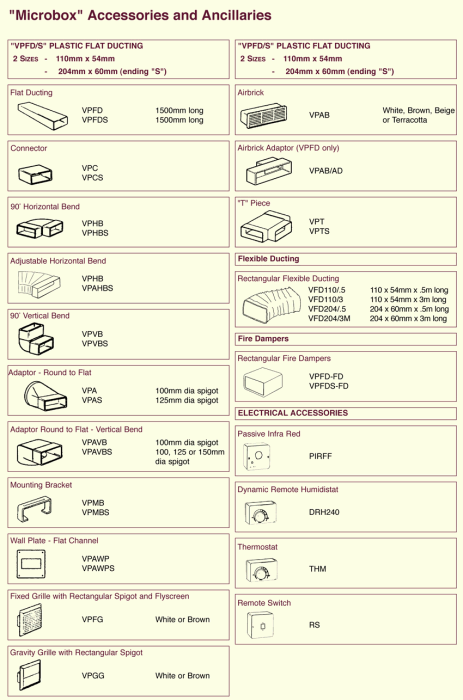

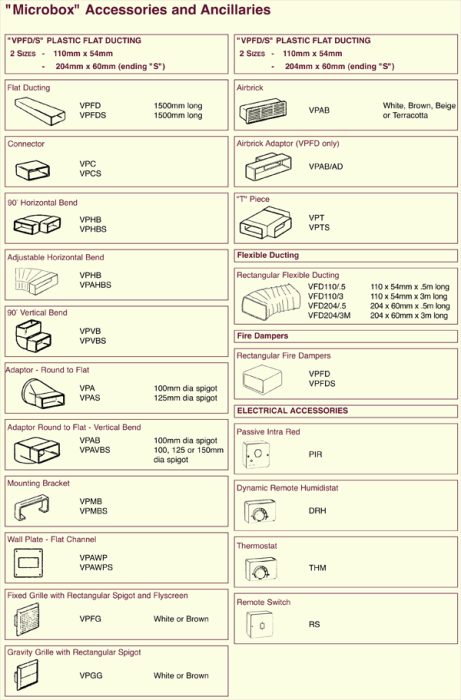

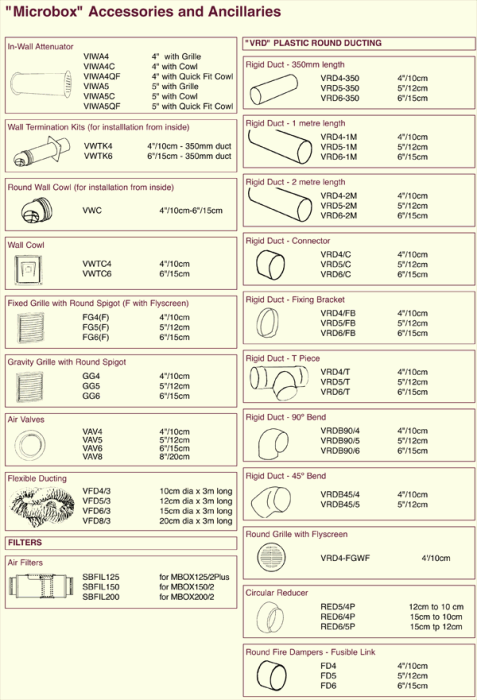

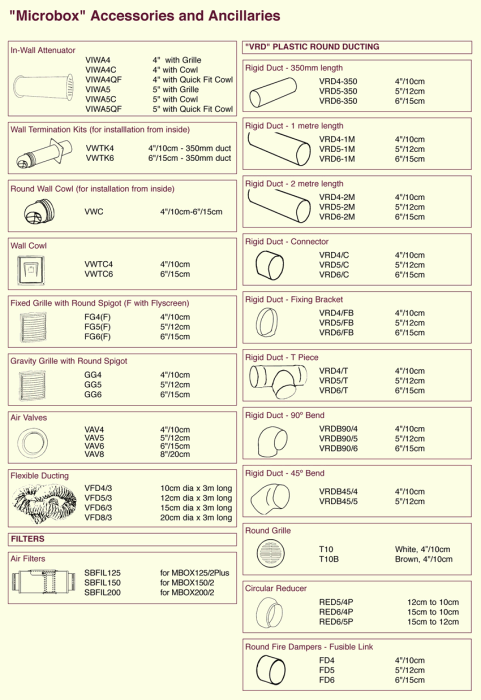

Accessories

**

Back to top

Typical specification

Supply and install an MBOX125/2 two speed whole house ventilation unit as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan must be capable of extracting from more than one room within a dwelling of no more than 200m3, and be for installation into the ceiling void using 5"/12cm ducting to and from the fan spigots. It should be two speed with a choice of four lower speeds on installation (the option switch to be on outside of casing), and run continuously and silently at its lower speed. The boost speed should have the possibility of being triggered by either a PIR, a remote humidistat, a thermostat, a remote switch (or by a combination of these devices), and be capable of being controlled with an overrun timer. The fan should be no more than 122mm deep, have a steel cabinet lined with 10mm thick acoustic insulation to ensure quiet running and should have an easily accessible service and maintenance panel and be protected to IPX4. The trickle speed selection switch should be easily accessible on the outside of the casing and it should be pre-wired for easy electrical connection. It should have backward curved blades dynamically balanced on external rotor motor provided with thermal cut-out. The fan should comply with all current IEE, EC and Building Regulations requirements and also be BRE Digest 398 compliant.
