General

• For wall or panel mounting.
• For industrial and commercial installations.
• High performance rates combined with low noise level
• "PAFL" models with ATEX explosion proof motor for installation in Zone 1 areas
• "SL" models for use where space is limited
• "PAHT" High temperature models (Smokex®)
• Airflow to 16m3/sec.
• Can be used with speed controller (except flameproof models)
• Can be installed with airflow reversed (except 200 and 250 sizes)

Specification

• PA and PAFL frame in epoxy painted steel plate
• SL frame in steel or high density plastic
• Blade in reinforced polypropylene
• Blade hub in die-cast aluminium
• Safety grille in steel rod
• Class F motor insulation
• Suitable for operation in air temperatures between -10ºC and +60ºC
• IP55 protection (except 204 and 254 sizes)
• Optional die-cast aluminium blades
• 8 pole motors available on certain 3 phase sizes

Compliance

• UNI EN ISO 9000-2000 certified
• UNI ISO 6580-EUROVENT
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• CE marked
• ATEX Directive

Range

PA204, PA254, PA314, PA354, PA404, PA454, PA504, PA506, PA564, PA566, PA634, PA636, PA714, PA716, PA804A PA804B, PA806, PA1004A, PA1004B, PA1006 - in single and three phase.

"PAFL" models NOT available in 800mm or 1000mm sizes

Speak to Vectaire Sales Office: - for 800mm and 1000mm sizes of "PA" range - for information on "PAHT" (Smokex®)

SL354, SL404, SL454, SL504, SL564

Pressure

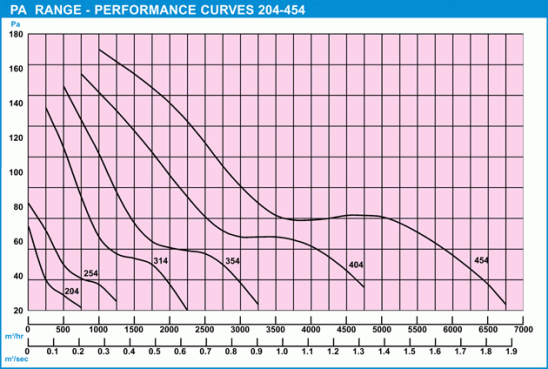

PA Curves 204-454 models

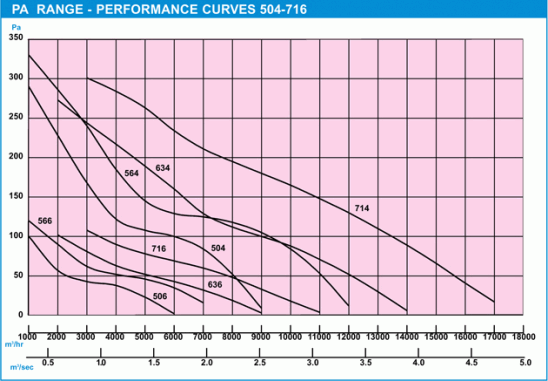

PA Curves 504-716 models

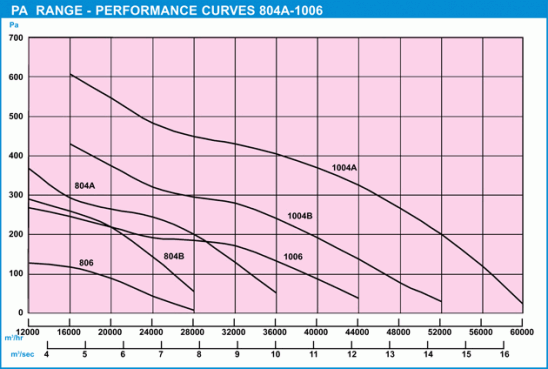

PA Curves 804A-1006 models

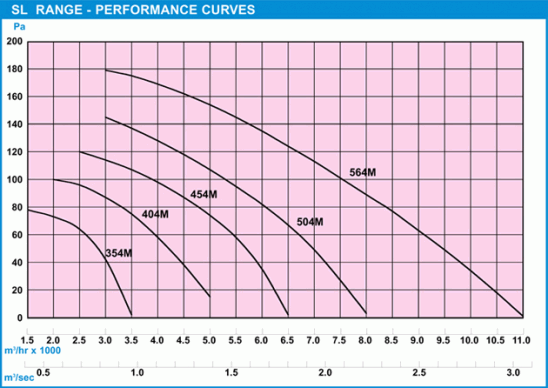

SL Curves

Dimensions

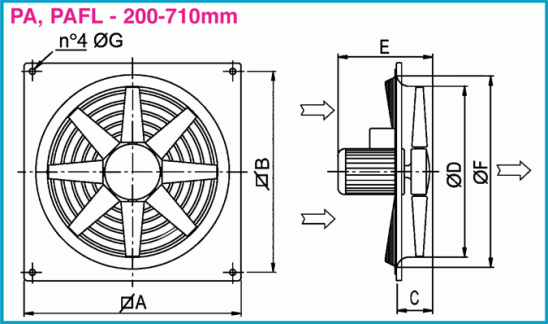

PA/PFL Dims dia 200-710

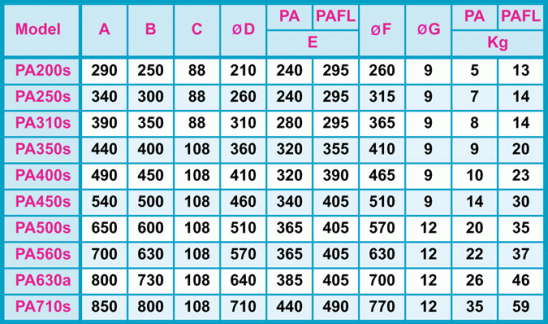

PA/PFL Dims 200-710

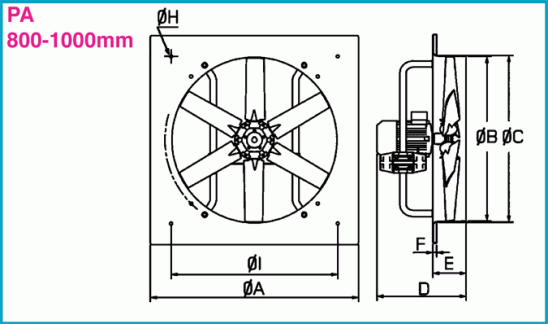

PA Dims dia 800-1000

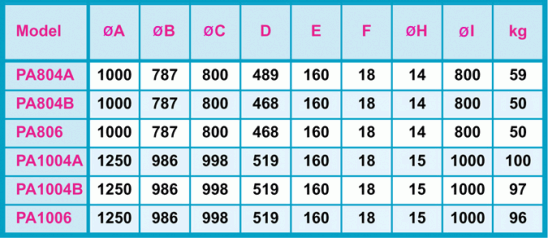

PA Dims 800-1000

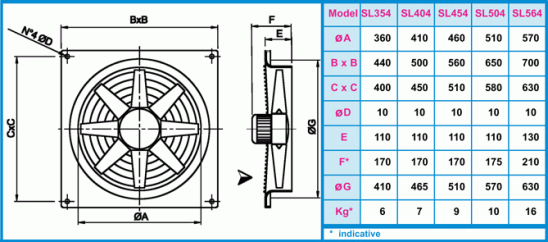

SL Dimensions

Data

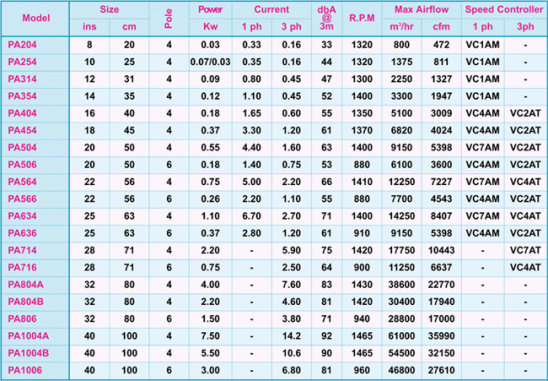

PA Performance

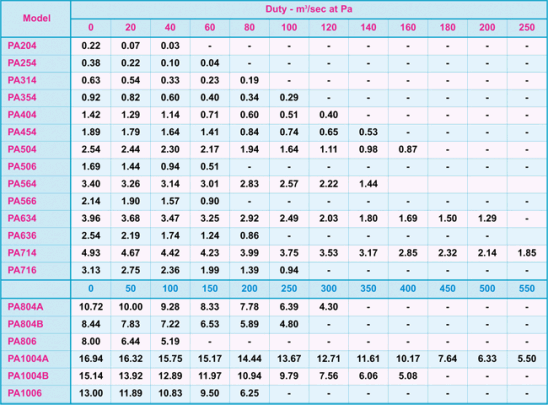

PA Duty

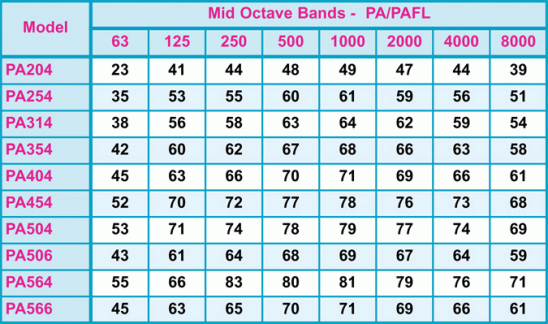

PA Sound Power 204-566

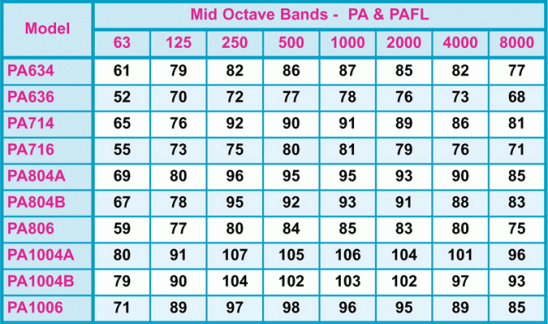

PA Sound Power 634-1006

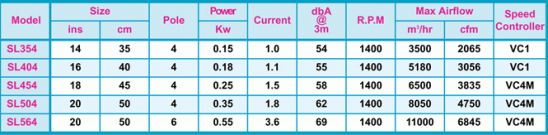

SL Performance

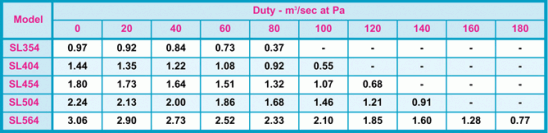

SL Duty

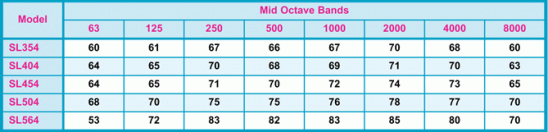

SL Sound Power

Accessories

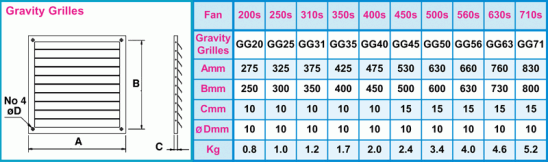

Gravity Grilles

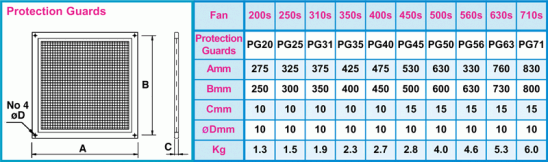

Protection Guards

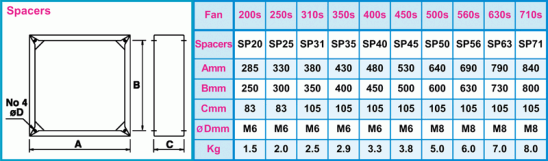

Spacers

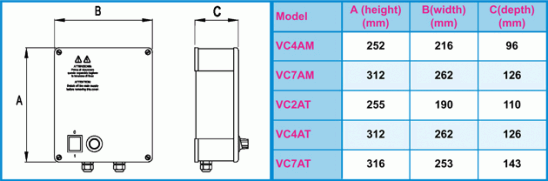

Speed Controllers
