"RA" Recessed Extract Fans
- General
- Specification
- Compliance
- Range
- Features
- Installation
- Wiring
- Pressure
- Dimensions
- Data
- Accessories
- Typical specification
- Leaflet
- O&M Sheets

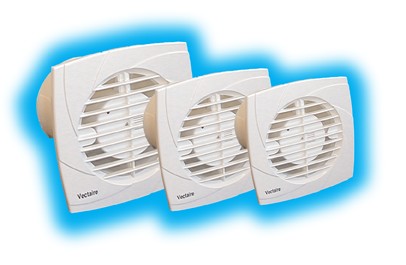

- Slimline ultra low profile axial fans
- 12 models
- IPX4 - Splashproof
- 3 sizes for toilets, shower-rooms, bathrooms, utility rooms and kitchens
- For walls, ceilings or windows (with window kit)
- Standard, Timer, Humidity Control and Pull Cord
- Exceeds Building Regulations requirements (including new Document F requirements)
- BEAB APPROVED
General
- axial fans to exhaust air and fumes directly outside or through short lengths of ducting
- recessed design - from 8mm projection
- quick fix wall installation - no screws
- adjustable timer - 3-15 minutes
- dynamic humidistat with night time set back and anti-hunting device
- "T" and "HT" models have quick fit terminal block
- easy plasterboard ceiling installation with (optional) Ceiling Ring
- backdraught shutter available for 4"/10cm models
- 5"/12cm and 6"/15cm models with back-draught shutter
- whisper quiet operation
- IPX4 - Splashproof - can safely be installed in Zones I and II
Back to top
Specification
- casings from shockproof and heat resistant plastics
- double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
- motors incorporate thermal cut-out
- maximum ambient temperature - 40°C
Back to top
Compliance
- EN60335-2-80
- EC Low Voltage Directive 73/23-93/68
- EC Directive EMC89/336
- CE marked
- BEAB Approved
Back to top
Range
- RA10/4, 12/5, 15/6 - standard
- RA 10/4C, 12/5C, 15/6C - pull cord operation (not suitable for window or ceiling installation)
- RA 10/4T, 12/5T, 15/6T - overrun timer
- RA 10/4HT, 12/5HT, 15/6HT - humidity control and overrun timer
Back to top
ultra slim profile
quick fit terminal block
quick fix wall installation
Wall
Ceiling
Window
Quick Fix Wall
Standard
Cord
Timer & Humidistat/Timer
Fixed Grille
Gravity Grille
Wall Vent Kit
Wall Duct Kit
Ceiling Ring
Window KitTypical specification
Supply and install an RA10/4HT recessed axial toilet/bathroom/ shower-room fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan is to be suitable for installation, either in a ceiling, wall or window, and be complete with an integral adjustable timer and dynamic humidistat. The fan should be made of shockproof and heat resistant plastic, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut out. The fan should be double insulated, have a quick-fix terminal block, and be suitable for installation into Zones I and II. Fan to comply with all current IEE, EC and Building Regulations requirements for installation into a toilet/ bathroom or shower-room and be BEAB Approved.
