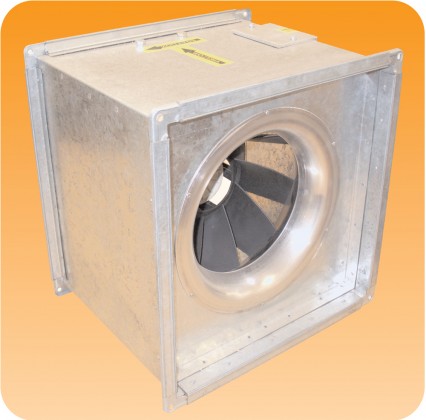

General

• For internal installation in industrial and commercial installations
• High performance rates combined with low noise level
• Airflow to 4.17 m3/sec
• Speed controllable using auto-transformer
• Flanged connection for quick and simple installation
• Unique, integral terminal box allows for electrical connections on two sides of casing to ensure flexibility during installation
• Roof mounted models also available

Specification

• Robust construction with casing in 1mm thick galvanised sheet steel
• Motor is external rotor type, 4 pole, single or three phase (other options available)
• Connections for thermal cut-out protection
• Integral motor/impeller assembly with impeller in polyamide for sizes 350-450 or aluminium for sizes 500 and 560
• Suitable for operation in air temperatures between -10ºC and +60ºC (Models SMX354M, SMX404M and SMX454M). Models SMX504M and SMX564T suitable for between -10ºC and +40ºC
• Motor/fan assembly is IP54 rated

Compliance

• Manufactured to ISO9001 in the UK
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336

Range

• SMX354M - 4 pole, single phase
• SMX404M - 4 pole, single phase
• SMX454M - 4 pole, single phase
• SMX504M - 4 pole, single phase
• SMX564T - 4 pole, three phase

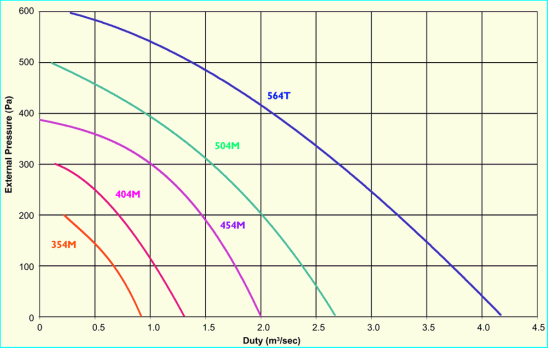

Pressure

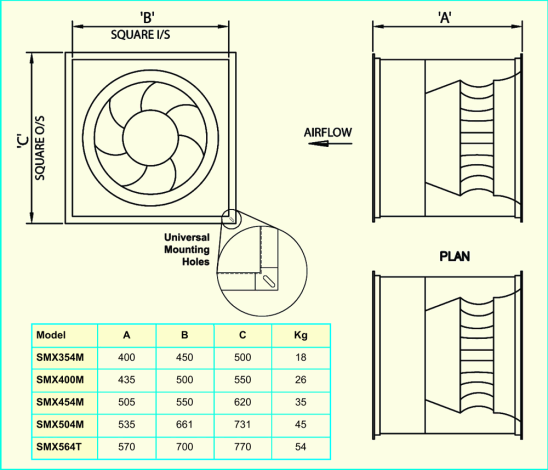

Dimensions

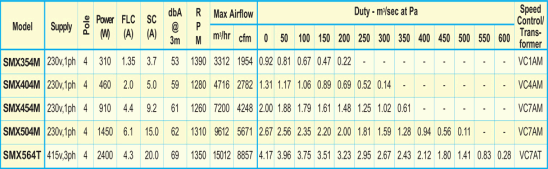

Data

Performance

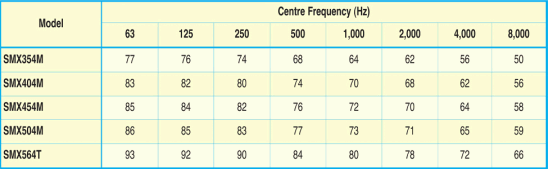

Sound

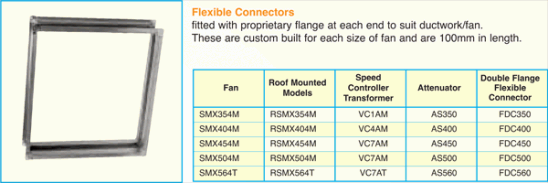

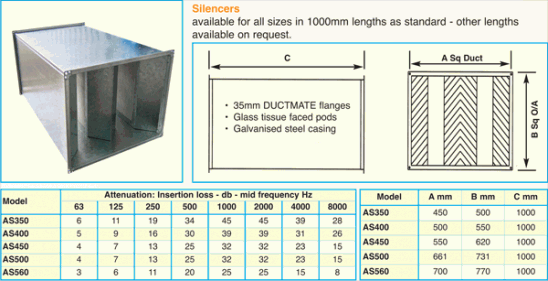

Accessories

Typical specification

Supply and install an SMX400M , 4 pole, single phase square cased, mixed flow fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation in commercial or industrial premises. It is to be speed controllable using an autotransformer. The casing should be in 1mm thick galvanised sheet steel, the motor to be of the external rotor type, single phase, fitted with thermal overload protection. The unit should be suitable for operation in air temperatures between -10ºC and +60ºC and have a motor/fan assembly with IP54 protection. Fan should be manufactured in UK to ISO9001.
