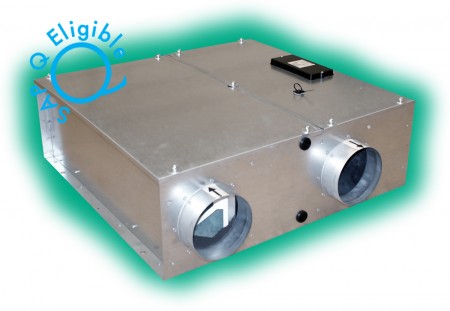

WHHR100/90DC

  • energy efficient EC motor
  • very low profile - only 200mm deep
  • efficient, low energy solution to controlling condensation and pollution
  • provides low level continuous ventilation in a kitchen and up to 6 wet rooms
  • up to 79% heat efficiency
  • variable choice of low (trickle) and boost speed at installation
  • for ceiling, loft or void installation
  • top or bottom access
  • low noise levels and running costs
  • compliant with Build Regulations Parts L1 2013 and F2013
  • manufactured in UK to ISO9001

General

  • Up to 74 litre/sec at 50Pa - max 80 litre/sec capacity
  • for areas up to 210m2
  • up to 79% of heat recovered
  • easy to install and maintain
  • for fitting into lofts, voids, false ceilings or cupboards
  • variable low (trickle) and boost options
  • boost speed triggered by a switched live connection from:
    • a light switch (if more than one light switch is used, each one must be a double pole switch)
    • DRH240 (dynamic remote humidistat)
    • PIRFF (passive infra red)
    • THM (thermostat)
    • a remote switch/pull cord
  • low noise levels
  • low running costs
  • extra security - no need to open windows

Vectaire Ltd can supply all accessories for use with these units, including air filter cassettes, silencers, fire dampers, air valves, ducting, outside grilles and wall cowls. Additionally, Vectaire offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation, commissioning and maintenance of these products



Back to top

Specification

  • compact low profile unit - only 200mm deep
  • casing in galvanised sheet steel
  • thermo-acoustic lining
  • low energy EC brushless motor
  • single width, single inlet, direct drive, backward curved impellors
  • operates in temperature up to 60ºC
  • pre-wired for easy electrical connection
  • uses standard, disposable G3 filters
  • counter flow heat exchanger
  • manufactured in UK to ISO 9001

CONTROL FEATURES - - variable adjustment - trickle and boost speeds set at installation - boost setting (via switched live) - frost protection - air temperature switches off intake motor when temperatures fall to near freezing - change of ductwork handing



Back to top

Compliance

  • Part L1 2013 of Building Regulations for enhanced energy saving capability
  • Part F 2013 of Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant
  • Conforms to requirements of EC Council directives relating to Electromagnetic Compatibility and Electrical Safety: 2006/95/CE (LVD), 2004/108/CE (EMC), EN 60335-2-80
  • CE marked
  • SAP Q eligible


Back to top

Range

  • WHHR100/90DCTAL - top access, left hand
  • WHHR100/90DCBAL - bottom access, left hand
  • WHHR100/90DCTAR - top access, right hand
  • WHHR100/90DCBAR - bottom access, right hand


Back to top

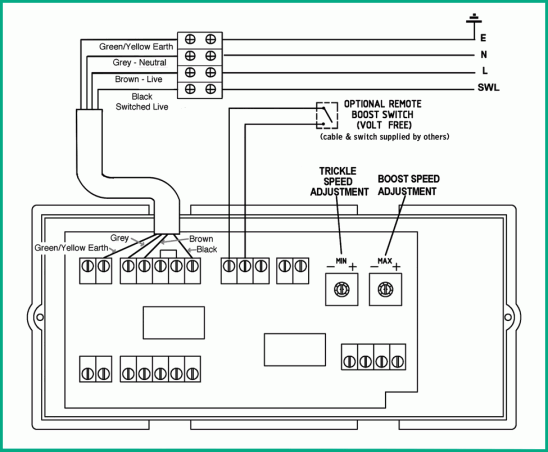

Wiring

*Wiring-100 90 60.png

Back to top

Pressure

*

Back to top

Dimensions

*

Back to top

Typical specification

Supply and install a Vectaire WHHR100/90DC energy efficient MVHR which has been tested and is SAP PCDB Listed as manufactured by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The unit is to give low level, continuous ventilation to a kitchen and six other wet rooms. The unit should be for loft, void, false ceiling or cupboard installation and be no more than 200mm deep. It should recover up to 79% of heat from extracted air, separating the air-flows using a counter flow heat exchanger. The unit should incorporate a low energy EC brushless motor for low noise levels and low energy consumption with an SFP down to 0.71. It should have a variable choice of low (trickle) speed and boost options for optimum setting. The unit should be pre-wired for easy eletrical connection. The unit should comply with Part L1 2013 and Part F 2013 of Building Regulations, be EU RoHS Directive Compliant, conform to the requirements of EC Council directives relating to Electromagnetic Compatibility and Electrical Safety: 2006/95/CE (LVD), 2004/108/CE (EMC), EN 60335-2-80, be CE marked and be SAP Q eligible.
