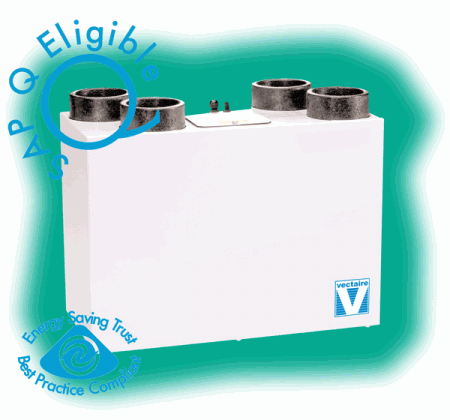

WHHR125DC
- Highly efficient, low energy solution to condensation and pollutant control
- Continuous ventilation in kitchen plus up to 5 additional wet rooms
- Over 90% heat exchange efficiency
- Low noise levels
- Building Regulations Part L and Part F compliant
General
- SAP Q eligible whole house heat recovery unit for homes
- continuous ventilation in kitchen and up to 5 additional wet rooms - optimum use in kitchen plus 2 wetrooms
- maximum airflow 165m3/hr
- suitable for areas up to 115m2
- up to 91% of heat is recovered from air extracted from warm, moist rooms to create a stable, comfortable, healthy environment
- easy to install with quick fix mounting bracket

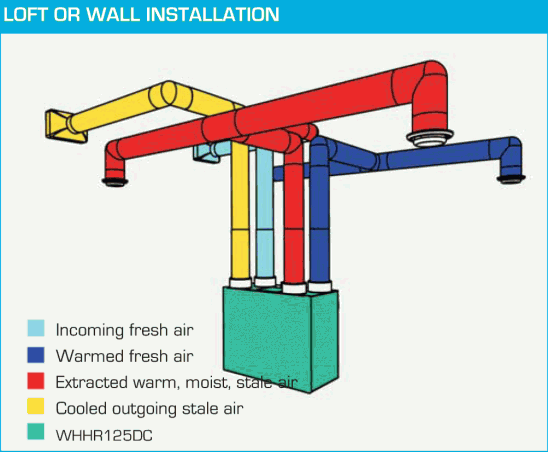

- for fitting into lofts, false ceilings or cupboards
- multiple choice low (trickle) speed and boost options - factory set at 44% but can be adjusted by installer
- boost speed obtainable by user via remote switch/pull cord (ie a volt free contact switch - not supplied) or by a humidistat, thermostat, or PIR sensor using an intermediate, external relay (available separately)
- has integral over-run timer for boost speed
- frost protection
- low noise levels
- low running costs
- gives extra security by removing need to open windows
- guaranteed for 3 years
- Vectaire Ltd can supply all accessories for use with these units, including ducting and metal filters, outside grilles and wall cowls
Back to top
Specification

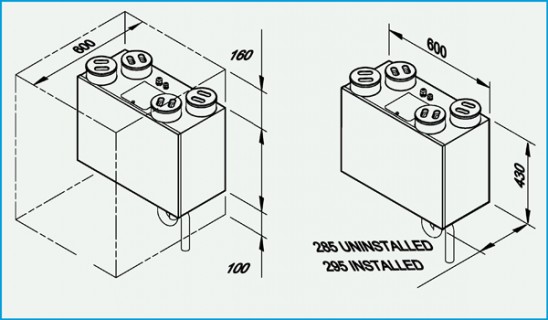

- very compact, low profile unit
- housing from Zintec sheet steel powder coated white
- expanded polypropylene (EPP) heat exchanger
- closed cell foamed Nitrile rubber insulation - class "O" fire rating
- grade G3 synthetic filters, flame resistant to BS5588
- can be used with 100mm or 125mm dia ducting without needing adaptors
- operates in temperature up to 40ºC
- weight - 16kg
Back to top
Compliance
- Part L of Building Regulations for enhanced energy saving capability
- Part F of Building Regulations for reliable, efficient ventilation
- EU RoHS Directive Compliant. • Conforms to requirements of EC Council directives relating to Electromagnetic Compatibility and Electrical Safety: 2006/95/EC (LVD), 2004/108/EC (EMC)EN 60335-1:2002/ A2:2006, EN 60335-2-80:2003/A1:2004.
- CE marked
- SAP Q eligible
- EST Best Practice Compliant
Back to top

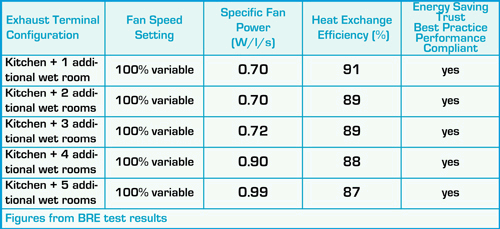

Energy Level Performance using Rigid Ducting
Download
