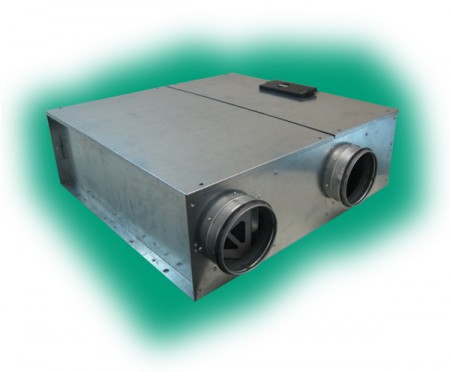

WHHR200/90DC

Whole House Heat Recovery unit for larger homes and offices
continuous ventilation in kitchen and up to 6 additional wet rooms

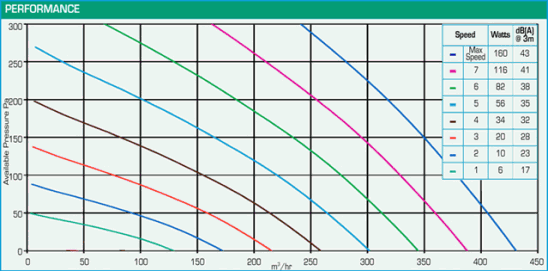

maximum airflow 430m3/hr
suitable for areas up to 250m2

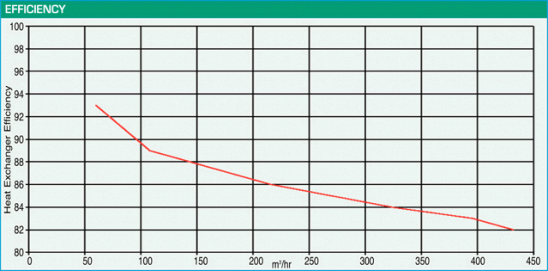

over 90% of heat is recovered from air extracted from warm, moist rooms to create a stable, comfortable, healthy environment
easy to install and maintain

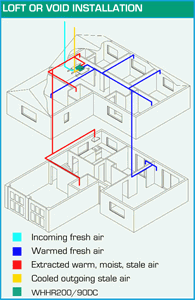

for fitting into lofts, voids, false ceilings or cupboards (can be angled horizontally or vertically)
multiple choice low (trickle) speed and boost options - factory set at most usual requirement but can be adjusted by installer
boost speed obtainable by user via remote switch/pull cord (ie a volt free contact switch - not supplied) or by a humidistat, thermostat, or PIR sensor using an intermediate, external relay (available separately)
has integral over-run timer for boost speed
low noise levels
low running costs
gives extra security by removing need to open windows
guaranteed for 3 years
Vectaire Ltd can supply all accessories for use with these units, including ducting and metal filters, outside grilles and wall cowls

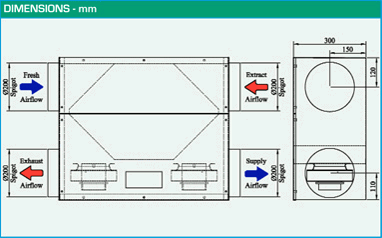

compact, low profile unit
casing manufactured from sheet steel lined with 25mm thick acoustic "O" class foam
low energy DC external rotor motor has sealed for life bearings
impellers are single width, single inlet, direct drive and backward curved for higher efficiency
will not overload when encountering ductwork pressure
easy plug-in connection cable
operates in temperature up to 80ºC
uses standard, disposable G3 filters

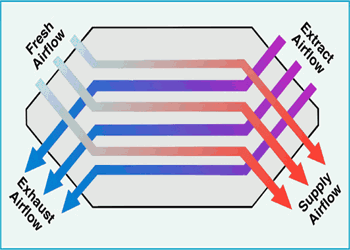

counter flow heat exchanger with aluminium plates for greater efficiency, superior separation of air and longer life

Part L of Building Regulations for enhanced energy saving capability
Part F of Building Regulations for reliable, efficient ventilation
built to BS EN ISO 9001
complies with IEC 60335-2-80, LVD2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
CE marked
