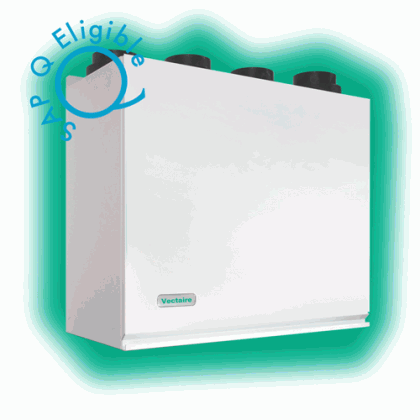

WHHR250DC
- Highly efficient, low energy solution to condensation and pollutant control
- Continuous ventilation in kitchen plus up to 5 additional wet rooms
- Up to 60% heat exchange efficiency
- Low noise levels
- Building Regulations Part L and Part F compliant
General
- SAP Q eligible whole house heat recovery unit for homes and offices
- continuous ventilation in kitchen and up to 5 additional wet rooms
- maximum airflow over 300m3/hr
- up to 60% of heat is recovered from air extracted from warm, moist rooms to create a stable, comfortable, healthy environment
- easy to install and maintain
- for wall (can be above an optional cooker hood canopy) or loft installation - can be installed horizontally or vertically (mounting kit necessary for loft installation)
- multiple choice low (trickle) and boost (higher) speed set by installer
- boost speed can be tripped via a humidistat, air quality sensor or PIR sensor
- low noise levels
- low running costs
- gives extra security by removing need to open windows
- guaranteed for 3 years
- Vectaire Ltd can supply all accessories for use with these units, including ducting and metal filters, outside grilles and wall cowls
Back to top
Specification
- casing manufactured from aludip steel in white
- low energy DC external motor
- aluminium plate heat exchanger
Back to top
Compliance
- Part L of Building Regulations for enhanced energy saving capability
- Part F of Building Regulations for reliable, efficient ventilation
- built to BS EN ISO 9001
- complies with IEC 60335-2-80, LVD2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
- CE marked
- SAP Q eligible
Back to top

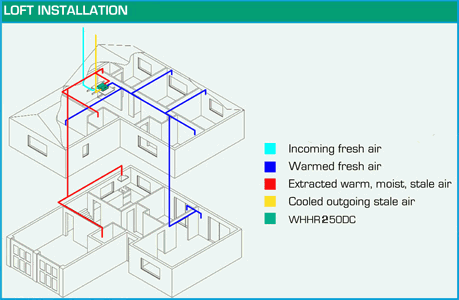

Loft Installation

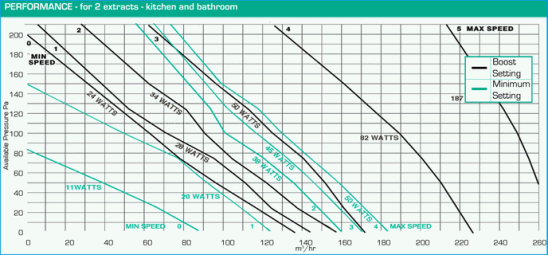

Performance Curves

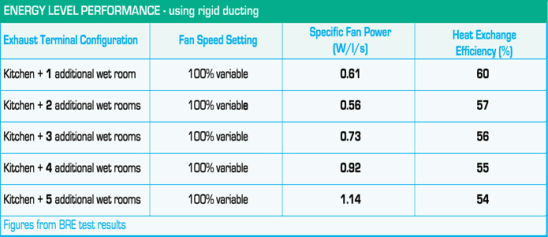

Energy Level Performance
Download
