General

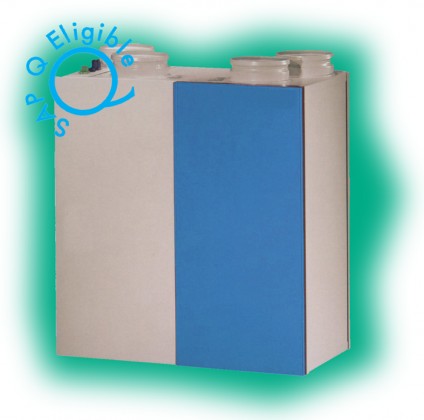

• SAP Q eligible whole house heat recovery units for homes
• continuous ventilation in kitchen and up to 4 additional wet rooms
• airflow at 150Pa - 180m3/hr
• suitable for areas up to 150m2
• up to 88% of heat is recovered from air extracted from warm, moist rooms to create a stable, comfortable, healthy environment
• constant flow fans keep air flow rate at same level under all conditions
• easy to install
• for fitting into lofts or cupboards • multiple choice low (trickle) speed and boost options
• boost speed options available
• low noise levels
• low running costs
• integral filters which remove 95% of dust from incoming air
• guaranteed for 3 years
• Vectaire Ltd can supply all accessories for use with these units, including ducting and metal filters, outside grilles and wall cowls

Vectaire Ltd offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation and commissioning of these products

Specification

• compact units
• powder coated steel casing
• pre-wired for easy installation
• incoming air via a G6 pollen filter
• heat exchanger protected by G4 filters
• easy access for filter maintenance
• fan/motor assembly with sealed for life bearings and forward curved impellers
• WHHRC180DC connection via 125mm spigots
• 20mm external dia condensate discharge
• operates in ambient temperature up to 40ºC
• full digital control

Compliance

• Part L1A and L1B of Building Regulations for enhanced energy saving capability
• Part F of Building Regulations for reliable, efficient ventilation
• manufactured to BS EN ISO 9001
• complies with IEC 60335-2-80, LVD2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
• CE marked
• SAP Q eligible
• EST Best Practice Performance Compliant
