Vectaire

Ventilation specialist

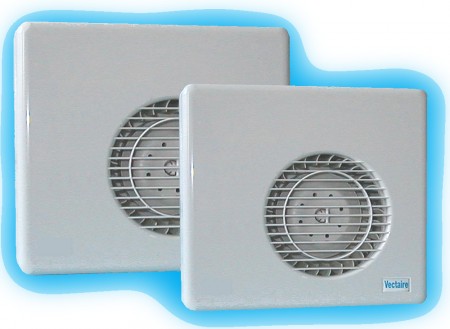

"C" Super Silent Extract Fans

  • High pressure duct fans
  • 10 models
  • IPX4 - Splashproof
  • 2 sizes for toilets, shower-rooms, bathrooms, utility rooms and kitchens
  • For walls or ceilings
  • Standard, Cord, Timer and Humidity Control
  • SUPER SILENT 2 speed models
  • Exceeds Building Regulations requirements (including new Document F)

General

  • high pressure duct fan to exhaust air and fumes through long lengths of rigid or flexible ducting
  • super silent two speed models
  • hole diameter 4"/10cm on all models
  • integral spring loaded backdraught shutter
  • adjustable timer - 3-15 minutes
  • dynamic humidistat with night time set back and anti-hunting device
  • humidistat model with neon to show fan in manual operation
  • backward curved centrifugal impeller to ensure near silence on low speed operation
  • filter available on all models
  • IPX4 - Splashproof - can safely be installed in Zones I and II


Back to top

Specification

  • casings from high quality, impact resistant, white thermo-plastic material with high mechanical strength
  • double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
  • motor windings protected to Class B
  • motors incorporate thermal cut-out
  • maximum ambient temperature - 40°C


Back to top

Compliance

  • EN60335-2-80
  • EC Low Voltage Directive 2006/95/CD
  • EC Directive EMC204/108/CE
  • CE marked


Back to top

Range

CB95s

  • CB95 - standard
  • CB95T - overrun timer
  • CB952C - 2 speed, cord
  • CB95H2C - humidistat, 2 speed, cord
  • CB95HCT - humidistat, cord and timer

CK220s

  • CK220 - standard
  • CK220T - overrun timer
  • CK2202C - 2 speed, cord
  • CK220H2C - humidistat, 2 speed, cord
  • CK220HCT - humidistat, cord and timer

SELV models

  • CB952CLV - 2 speed, cord
  • CB95H2CLV -humidistat, 2 speed, cord

2 SPEED MODELS SHOULD BE INSTALLED WITH EITHER A FIXED GRILLE OR COWL



Back to top

Features

*Filter

Back to top

Installation

*Ceiling*Communal Duct*Wall

Back to top

Wiring

*Standard*Timer*2 Speed Cord*H2C and HCT*Remote 2C, H2C and HCT

Back to top

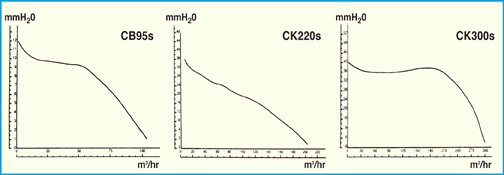

Pressure

*

Back to top

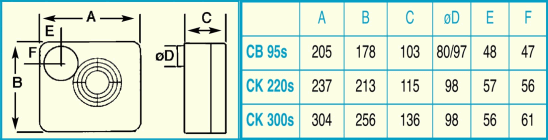

Dimensions

*

Back to top

Accessories

*Fixed Grille*Gravity Grille*Flexible Ducting

Back to top

Typical specification

Supply and install a Vectaire CB95H2C high pressure centrifugal fan for toilets/bathrooms supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan can either be for installation in a ceiling or wall using 4"/10cm ducting. The fan should be complete with an integral backdraught shutter and anti-vibration gasket . It should have a dynamic humidistat and two speeds. It should operate automatically at its near silent lower speed at a pre-determined level of relative humidity, and be capable of being boosted to its higher level by use of a pull-cord. The fan should be made of shockproof and heat resistant plastic, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut-out. The fan should be double insulated and be capable of being used with long lengths of ducting. The fan should be splashproof (IPX4) rated, and comply with all current IEE, EC and Building Regulations requirements for installation into a toilet, shower-room, bathroom or utility room.
