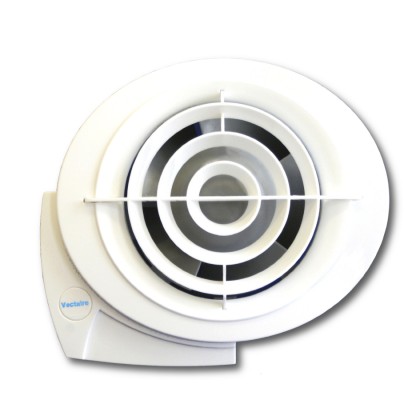

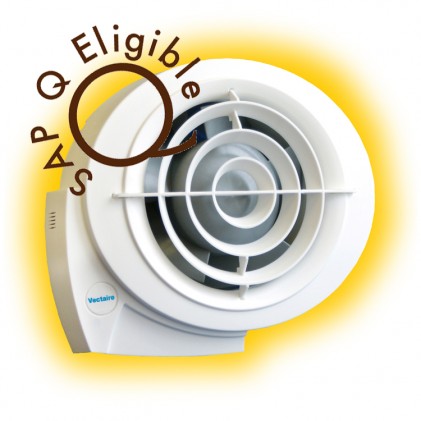

E-Smile

  • provides low level continuous ventilation to control condensation
  • 3 speed axial fan
  • powerful low profile unit
  • choice of two low speeds at installation
  • wall or ceiling
  • low noise levels
  • low running costs
  • for any domestic wet room
  • complies with Building Regulations Parts L1A 2013 and F 2013

General

  • exhausts directly to the outside or through medium length ducting - up to 8m)
  • sfp down to 0.37 W/l/s
  • runs continuously at pre-selected choice of two speeds (fixed at installation)
  • Speed 1 operates at 11 l/s (factory set)
  • Speed 2 operates at 14 l/s
  • speed boosted to maximum (21 l/s) using integral pull cord or by:
    • remote switch/light switch
    • PIR sensor
    • DRH240 (dynamic remote humidistat)
  • easy and economical to install and maintain
  • ES1003 design allows installation at any angle with only three fixing points
  • energy saving ventilation
  • extremely low running costs
  • low carbon footprint
  • 5 year warranty - 1 year parts and labour, 4 years parts only
  • Vectaire Ltd can supply all accessories for use with these units, including fire dampers, air valves, ducting, outside grilles, wall cowls and window kits. Additionally, Vectaire offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation, commissioning and maintenance of these products
  • These fans are NOT suitable for use with Gravity Grilles. They should be installed using either Cowls or Fixed Grilles. Only approved accessories should be used.


Back to top

Specification

  • constructed using recyclable and/or reusable materials and components for minimum ecological impact
  • shockproof, high quality technopolymer casing
  • designed using latest wind tunnel technology and CFD simulations
  • advanced profile to increase aerodynamic efficiency
  • induction motor with thermal protection
  • 40,000 hour life motors with maintenance free and long life ball bearings
  • operates in ambient temperatures up to 40ºC
  • double insulated - no earth required
  • IPX4 Splashproof rated - can safely be installed in Zones I and II


Back to top

Compliance

  • Part L1A 2013 of Building Regulations for enhanced energy saving capability
  • Part F 2013 of Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant.
  • Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
  • CE marked
  • SAP PCDB Listed
  • Energy Saving Trust Best Practice Compliant


Back to top

Range

  • ES1003 - 3 speed, cord or remote
  • ES1003CF- model c/w filter
  • ES1003CLV- SELV - 12v model
  • ES100H2C- 2 speed, humidity control
  • ES100H2CLV- 2 speed, humidity control - SELV - 12v model

THESE FANS SHOULD BE INSTALLED WITH EITHER A FIXED GRILLE OR COWL



Back to top

Features

*Wind Tunnel Design

Back to top

Installation

*Installation at any Angle

Back to top

Wiring

*via Light Switch*via Remote Illuminated Switch

Back to top

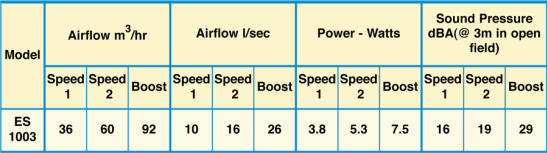

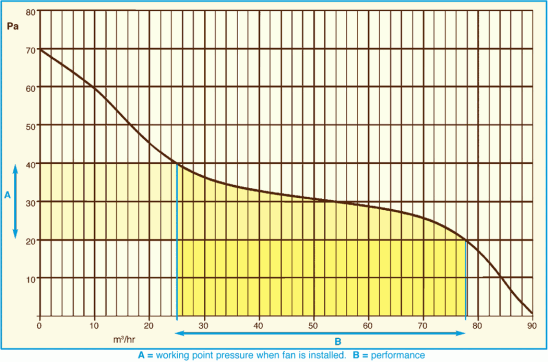

Pressure

*

Back to top

Dimensions

*

Back to top

Accessories

*Metal Filter*Wall Cowl

Back to top

Typical specification

Supply and Install a Vectaire ES1003 high performance axial fan which has been tested and is SAP PCDB Listed and suitable for ALL domestic wet rooms. The fan is to be suitable for installation either into a ceiling, wall or panel (with the appropriate accessories). The fan is to be continuous running at its low speed (from a choice of two lower speeds) and be capable of being boosted to maximum speed by means of an integral pull cord or (with the cord removed) by a remote switch, PIR sensor or humidistat. The fan casing should be made of shock-proof, high quality technopolymer, contain a high magnetic permeability induction motor with maintenance-free, long life ball bearings, and be protected with a thermal cut-out. The fan should be double insulated and be lPX4 splashproof protected suitable for installation into Zones I and Il. The fan is to comply with IEC 60335-2-80, LVD2006/95/CE and EMC O4/108/CE European Directive against radio interference and electro-magnetic compatibility, and be CE marked
