Vectaire

Ventilation specialist

ELP2204

  • energy efficient motor
  • provides low level continuous ventilation to control condensation
  • 4 speed centrifugal fan
  • choice of 3 boost speeds at installation
  • for wall or ceiling
  • for any kitchen
  • low noise levels and running costs
  • compliant with Building Regulations Parts L1 2013 and F 2013

General

  • exhausts directly to the outside or through long lengths of ducting (up to 15m)
  • sfp down to 0.35 W/l/s
  • easy and economical to install and maintain
  • runs continuously at trickle speed with choice of 3 boost speeds (fixed at installation)
  • Trickle speed 1 operates at 13 l/s (factory set)
  • Boost speed 2 operates at 30 l/s
  • Boost speed 3 operates at 45 l/s
  • Boost speed 4 operates at 60 l/s
  • speed boosted to maximum using integral pull cord or by:
    • remote switch/light switch
    • PIR sensor
    • DRH240 (dynamic remote humidistat)
  • anti-vibration gasket
  • robust and anti-reverse (removable) backdraught shutter
  • energy saving ventilation
  • extremely low running costs
  • low carbon footprint
  • 5 year warranty - 1 year parts and labour, 4 years parts only

Vectaire Ltd can supply all accessories for use with these units, including product filters. air filter cassettes, silencers, fire dampers, air valves, ducting, outside grilles and wall cowls. Additionally, Vectaire offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation, commissioning and maintenance of these products. N.B These fans are NOT suitable for use with Gravity Grilles. They should be installed using either Cowls or Fixed Grilles. Only approved accessories should be used: Wall Plates – as required Window kits – as required Wall terminations – all wall terminations must use the approved wall cowl or high rise kit



Back to top

Specification

  • shockproof, high quality technopolymer casing
  • designed using latest wind tunnel technology and CFD simulations
  • patented profile increases the fluid dynamics
  • motor with thermal protection
  • 30,000 hour life motors with maintenance free and long life ball bearings
  • operates in ambient temperatures up to 40ºC
  • double insulated - no earth required
  • IPX4 - Splashproof rated - can safely be installed in Zones I and II


Back to top

Compliance

  • Part L1A 2013 of Building Regulations for enhanced energy saving capability
  • Part F 2013 of Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant.
  • Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
  • CE marked


Back to top

Range

MODELS AVAILABLE: N.B timer adjustable from 0-30 mins

  • ELP2204 - 4 speed, continuous running, cord or remote
  • ELP2204DT - 4 speed, continuous running with comfort timer (timer does not activate unless fan has been running for 2 minutes to avoid unnecessary night-time operation) and pull-cord
  • ELP2204HDT - with comfort timer, humidistat and pull-cord
  • ELP2204-DATA - 4 speed, continuous running with pull-cord and integral data logger
  • ELP2204DT-DATA - with comfort timer, pull-cord and integral data logger
  • ELP2204HDT-DATA - with comfort timer, humidistat, pull-cord and integral data logger

Accessories available:

  • ELP2204BKIT - built-in kit

THESE FANS SHOULD BE INSTALLED WITH EITHER A FIXED GRILLE OR COWL



Back to top

Installation

**

Back to top

Pressure

*

Back to top

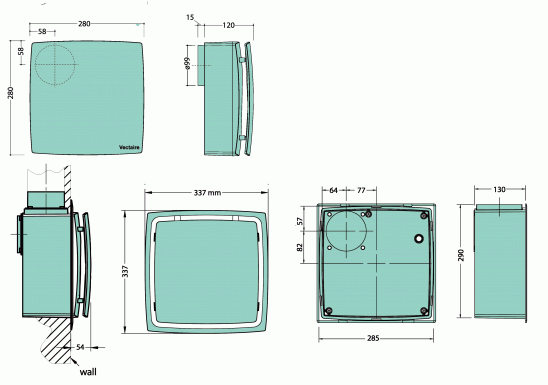

Dimensions

*

Back to top

Typical specification

Supply and Install an ELP2204HDT-DATA high performance, energy efficient centrifugal fan which is particularly suited for kitchen installation as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan is to be suitable for installation either into a wall or ceiling (with the appropriate accessories), and have the facility for built-in installation with the optional kit. It should have an air intake around the whole perimeter and have a footprint of no more than 280mm square. The fan should incorporate a comfort timer, humidistat, pull-cord and an integral data logger. The fan is to be continuous running at its low speed and be capable of being boosted to maximum speed (from a choice of three set by the installer) by means of an integral dynamic humidistat. The fan should have a filter and back-draught shutter. The fan should have specific fan power of no higher than 0.47w/l/s at maximum power.. The fan must not exceed 4.5w power consumption on the lowest speed. The fan casing should be made of shock-proof, high quality technopolymer, and should have an induction motor with maintenance-free, long life ball bearings, and up to a 30,000 hour life. It should be protected with a thermal cut-out. The fan should be double insulated and be lPX4 splashproof protected suitable for installation into Zones I and Il. The fan is to comply with IEC 60335-2-80, LVD2006/95/CE and EMC 2OO4/108/CE European Directive against radio interference and electro-magnetic compatibility, be CE marked. The fan should have 5 year manufacturer’s warranty and be supplied with a user guide as required. Only approved accessories should be used: Wall Plates – as required Wall terminations – all wall terminations must use the approved wall cowl or high rise kit. Built-in kit



Back to top

Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH

Tel: +44(0)1494 522333. Fax: +44(0)1494 522337. http://vectaire.co.uk, e-mail: sales@vectaire.co.uk
