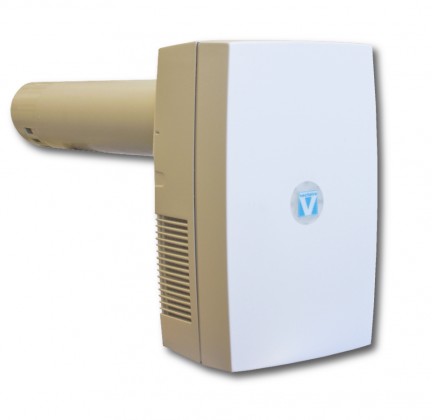

Heatrec 1003

  • 3 speed centrifugal fan for any domestic wet room
  • energy efficient EC motors
  • efficient, low energy solution to controlling condensation and pollution
  • provides low level continuous ventilation
  • with summer bypass and frost-stat
  • up to 75% heat exchange efficiency
  • choice of two low (trickle) speeds
  • speed can be boosted by user
  • low noise levels and running costs
  • compliant with Building Regulations Parts L1 2013 and F 2013

General

  • single room heat recovery unit for new build or refurbishment
  • for areas up to 40m²
  • up to 75% of heat recovered
  • easy to install and maintain
  • for installation into walls - can be rotated to four positions
  • two low (trickle) speeds
    • speed 1: 5 litres/sec
    • speed 2: 8 litres/sec
  • boost speed (15 litres/sec) triggered by user with integral pull-cord or a remote switch
  • tube heat recovery cell available in 400mm, 500mm or 600mm lengths
  • heat recovery tube incorporates condensate drainage and weather louvre
  • termination kit enables complete installation from inside (easy to install in high rise buildings)
  • low noise levels
  • low running costs
  • extra security - no need to open windows


Back to top

Specification

  • efficient and economical
  • casing from shockproof, high quality technopolymer
  • low energy EC motors
  • operates in temperature up to 40ºC
  • easy to maintain
  • filters and heat exchanger removable and washable
  • summer bypass - the Heatrec1003 has sensors which monitor the air in-take and extract. When the outside temperature is comfortable and the inside ambient temperature is lower than 18ºC, the air extract motor will be automatically switched off, whilst the air intake motor will continue to operate, ensuring a quick and efficient change of air inside the room. When the outside temperature is higher than 26ºC, the air intake motor will be switched off to ensure entilation without increasing the temperature.
  • integral frost-stat - the unit is fitted with an internal thermostat, which automatically stops the air intake if there is a risk of the heat exchanger freezing up (when the outside temperature is too low) and also avoiding the intake of very cold air.


Back to top

Compliance

  • Part L1 2013 of Building Regulations for enhanced energy saving capability
  • Part F 2013 of Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant. • IEC 60335-2-80, BT 2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
  • CE marked


Back to top

Range

  • HREC1003 - 3 speed, continuous running with pull-cord
  • HREC1003T - 3 speed, continuous running with timer and pull-cord
  • HREC1003HT - 3 speed, continuous running fan with timer, humidistat and pull-cord.

All above models available in SELV versions.

N.B timer adjustable from 0-30 mins.

Humidistat: relative humidity adjustable between 40-90%.



Back to top

Features

*Weather Louvre

Back to top

Installation

*

Back to top

Dimensions

*

Back to top

Typical specification

Supply and install a Vectaire HREC1003HT energy efficient single room heat recovery unit as manufactured by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The unit should be able to give low level, continuous ventilation to a domestic bathroom or kitchen and incorporate a humidistat which will automatically increase the airflow when necessary. The unit should be for wall installation and have a choice of heat recovery tubes to fit 400mm, 500mm or 600mm wall thicknesses. It should recover up to 75% of heat from extracted air, separating the air-flows using a heat exchanger. The unit should incorporate two low energy EC brushless motors for low noise levels and low energy consumption It should have as standard the option of two trickle speeds and the facility to boost the speed either automatically via the integral humidistat or by use of the integral pull cord. It should also incorporate a summer by-pass and integral frost-stat. The unit should comply with Part L1 2013 and Part F 2013 of Building Regulations; IEC 60335-2-80, BT 2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility; and be CE marked.
