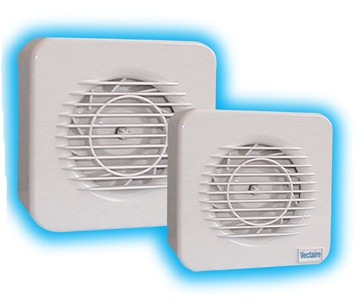

"MF" Super Silent Extract Fans

  • High pressure duct fans
  • 13 models
  • IPX4 - Splashproof
  • 2 sizes for toilets, shower- rooms, bathrooms, utility rooms and kitchens
  • For walls or ceilings
  • Standard, Cord, Timer and Humidity Control
  • SUPER SILENT 2 speed models
  • Exceeds Building Regulations requirements (including new Document F)

General

  • high pressure duct fan to exhaust air and fumes through long lengths of rigid or flexible ducting
  • super silent two speed models
  • hole diameter:
    • MF100s - 4"/10cm
    • MF250s - 4"/10cm or 5"/12cm
  • integral spring loaded backdraught shutter
  • anti-vibration gasket
  • adjustable timer - 3-25 minutes
  • dynamic humidistat with night time set back and anti-hunting device
  • humidistat model with neon to show fan in manual operation
  • backward curved centrifugal impeller to ensure near silence on low speed operation
  • filters available
  • IPX4 - Splashproof - can safely be installed in Zones I and II


Back to top

Specification

  • casings from high quality, impact resistant, white thermo-plastic material with high mechanical strength
  • double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
  • motor windings protected to Class B
  • motors incorporate thermal cut-out
  • maximum ambient temperature - 40°C


Back to top

Compliance

  • EN60335-2-80
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked
  • Keymark Approved


Back to top

Range

MF100s

  • MF100 - basic model
  • MF100T - timer
  • MF1002C - 2 speed, cord
  • MF1002R - 2 speed, remote
  • MF100TD - delayed timer
  • MF100H2R - humidistat, 2 speed, remote
  • MF100H2C - humidistat, 2 speed, cord
  • MF100HCT - humidistat, cord and timer

MF250s

  • MF250 - basic model
  • MF250C - cord
  • MF2502C - 2 speed, cord
  • MF250T - timer
  • MF250H2C - humidistat, 2 speed, cord
  • MF250HCT - humidistat, cord and timer

SELV models available

2 SPEED MODELS SHOULD BE INSTALLED WITH EITHER A FIXED GRILLE OR COWL



Back to top

Features

*fans with MF250 spigots to change duct size*Filter

Back to top

Installation

*Wall*Ceiling*Communal Duct

Back to top

Wiring

*Standard*Cord*2 Speed Cord*Timer and Delayed Timer *Humidity Control, 2 Speed, Cord AND Humidity Control, Cord, Timer*H2R and Remote H2C

Back to top

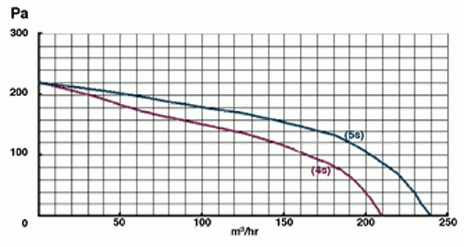

Pressure

*MF100s*MF250s

Back to top

Dimensions

*

Back to top

Accessories

*Fixed Grille*Gravity Grille*Flexible Ducting

Back to top

Typical specification

Supply and install a Vectaire MF1002C high pressure duct fan for toilets, bathrooms and shower-rooms supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, HP12 3RH. This fan must be splashproof (IPX4 rated), have two speeds, be continuous running on low speed, and be capable of being boosted to its maximum speed by means of a pull-cord. The sound level on low speed is to be so low as to be inaudible. This fan is to be suitable for installation either in a ceiling or a wall using 4”/10cm ducting. The fan should be complete with an anti-vibration gasket. The fan should be made of shockproof and heat resistant plastic, contain a motor mounted on sealed, self lubricating ball bearings and be protected with a thermal cut-out. Fan to comply with all current IEE, EC and Building Regulations requirements for installation into a toilet, bathroom or shower-room.
