Vectaire

Ventilation specialist

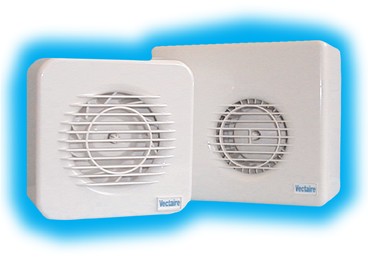

"SELV" Super Silent Extract Fans

  • Centrifugal high pressure duct fans
  • 3 models
  • IP57 - SELV
  • For toilets, shower-rooms, bathrooms and utility rooms
  • For walls or ceilings
  • Cord and Humidity Control
  • SUPER SILENT 2 speed models
  • Exceeds Building Regulations requirements (including new Document F)

General

  • high pressure duct fans
  • super silent two speed models
  • duct diameter 4"/10cm on all models
  • backdraught shutters
  • humidistats of dynamic type with night time set back and anti-hunting device
  • humidity control models with neon to show manual operation
  • filters available on MF and CB models
  • can safely be installed in Zones I and II
  • all models with remote transformer


Back to top

Specification

  • casings from high quality, impact resistant, white thermo-plastic material with high mechanical strength
  • double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
  • motor windings protected to Class B
  • motors incorporate thermal cut-out
  • maximum ambient temperature - 40°C


Back to top

Compliance

  • EN60335-2-80
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked
  • Key marked


Back to top

Range

SUPER SILENT

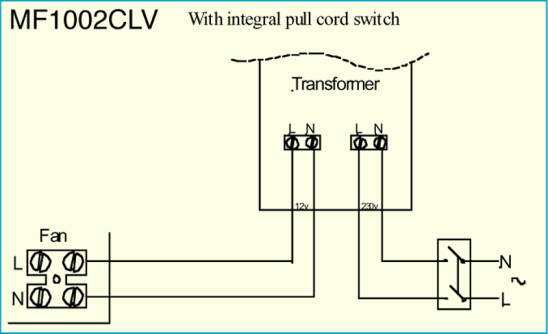

  • MF1002CLV - 2 speed, cord

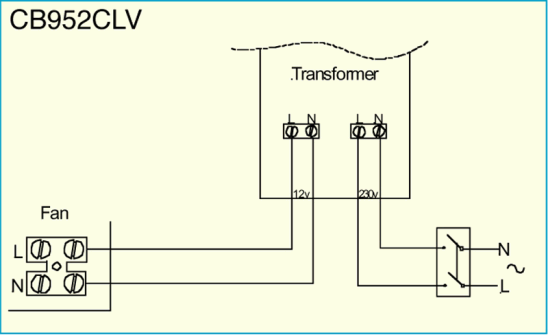

  • CB952CLV - 2 speed, cord

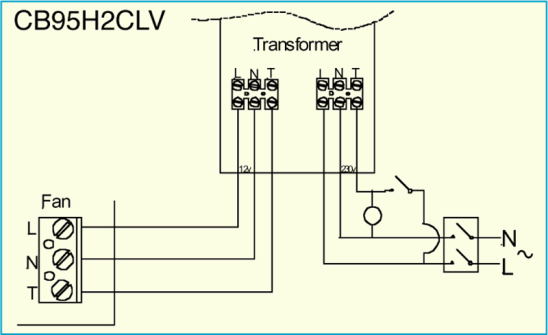

  • CB95H2CLV - humidistat, 2 speed, cord


Back to top

Features

*CB Filter*MF Filter

Back to top

Installation

*MF Wall*MF Ceiling*CB Wall*CB Duct

Back to top

Pressure

*MF100*CB95

Back to top

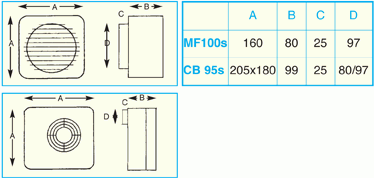

Dimensions

*

Back to top

Accessories

*Fixed Grille*Gravity Grille*Wall Vent Kit*Flexible Ducting

Back to top

Typical specification

Supply and install a Vectaire MF1002CLV super silent high pressure duct fan for toilets/bathrooms supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe,Bucks, HP12 3RH. This fan can either be for installation in a ceiling or wall using 4"/10cm ducting. The fan should be complete with an integral backdraught shutter and anti-vibration gasket . It should have a cord and two speeds, operating continuously at its near silent lower speed with the facility of being boosted to its higher level by use of a pull-cord. The fan should be made of shockproof and heat resistant plastic, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut-out. The fan should be double insulated and be capable of being used with long lengths of ducting. The fan should be SELV (IP57) rated, and comply with all current IEE, EC and Building Regulations requirements for installation into a toilet, shower-room, bathroom or utility room.



Back to top

Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH

Tel: +44(0)1494 522333. Fax: +44(0)1494 522337. http://vectaire.co.uk, e-mail: sales@vectaire.co.uk
