"VXARB" Wall Fans

  • Wall axial fans for medium and large rooms
  • Built-in
  • 2 models and capacities
  • Automatic
  • Reversible
  • 5-speed controller
  • Galvanised steel wall liner
  • Silent, slow moving shutters
  • Both sizes FIT INTO SAME SIZED HOLE
  • Exceeds Building Regulations requirements (including new Document F)

General

  • Wall Axial Fans to exhaust directly outside.
  • For domestic, commercial and leisure installations.
  • High performance rates
  • Automatic, slow moving, delay action shutters (for silent opening and closing).
  • Reversible.
  • 5 speed controller with neon indicator and on/off switch.
  • Fan shutters may safely be left open for trickle ventilation.
  • Galvanised telescopic wall liner to allow installation in walls from 190 to 380mm thick.
  • Easy to wire plug and socket connection.
  • Outside grille protected against rain to IPX4.
  • Attractive inside grille to blend in with all decors.
  • Fan casings in black to ensure unobtrusiveness.
  • Easy to install.
  • Easy to maintain.
  • VX23/9ARB and VX30/ARB fit into

same sized (370mm square) hole



Back to top

Specification

  • casings formed from shock-proof, high quality, impact resistant, technopolymer with high mechanical strength
  • motors of shaded pole type mounted on self lubricating, sealed for life bearings for long life and quiet running
  • protected with thermal cut-out
  • double insulated
  • maximum ambient temperature 40ºC


Back to top

Compliance

  • CEI61/28 - IEC342-1
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked
  • Key marked


Back to top

Range

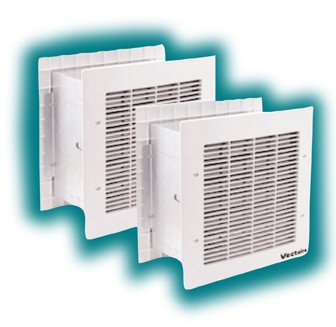

  • VX23/9ARB - 9"/23cm built-in, automatic, reversible
  • VX30/12ARB - 12"/30cm built-in, automatic, reversible


Back to top

Features

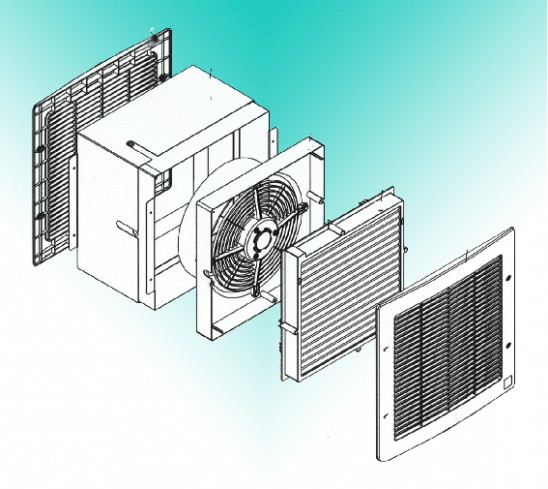

*Plug and socket for easy wiring*5 speed, reversible controller included*VXARBs complete with outer and inner grille, wall liner, motor assembly and automatic grille

Back to top

Installation

*

Back to top

Wiring

*With controller included*Extract only*Intake only*With reversing switch (not included)

Back to top

Dimensions

*

Back to top

Accessories

*Remote humidistat*Remote air quality sensor*Remote thermostat*Remote PIR

Back to top

Typical specification

Supply and install a VX30/12ARB automatic, reversible wall fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation in commercial premises into a wall up to 380mm thick and although it is a 12"/30cm fan have the capability of fitting into the same sized hole as a 9"/23cm model. It is to be operated by a remote 5 speed controller which also allows reversibility and the fan shutters to be left open for natural ventilation. The shutters should be of the silent opening, slow moving type. The fan casing should be formed from high quality, impact resistant, white thermoplastic material with high mechanical strength and the motor be of the shaded pole type mounted on self lubricating, sealed for life bearings for long life and quiet running protected with thermal cut-out. The fan should be double insulated. The fan should be complete with a 5 speed controller (and a flush fitting kit for the control- ler) and a galvanised steel telescopic wall linter. Fan to comply with all current IEE, EC and Building Regulations requirements and be keymark approved.
