"VX" Extract Fans

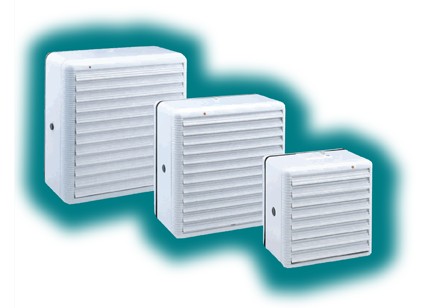

  • Axial fans for small, medium and large rooms
  • For walls, ceilings, panels or windows
  • 6 models, 3 sizes
  • Manual and Automatic
  • Reversible models
  • Silent, slow moving shutters
  • Exceeds Building Regulations requirements (including new Document F)

General

  • for domestic/commercial use
  • to exhaust air directly outside through windows walls, ceilings, panels and double glazed windows.
  • for kitchens, larger bathrooms, offices, pubs, restaurants, shops, warehouses, etc
  • all automatic models with slow moving, delay action shutters for silent opening and closing
  • complete with wall rods
  • automatic reversible models complete with 5 speed remote controller which also allows fan shutters to be left open for natural ventilation without security risk
  • incorporate neon light indicator to show when fan energised
  • easy to connect plug and socket
  • outside grille protected against rain to IPX4


Back to top

Specification

  • casings formed from high quality, impact resistant, white technopolymer with high mechanical strength
  • motors of shaded pole type mounted on self lubricating, sealed for life bearings for long life and quiet running
  • Impedance protected induction motor protected with thermal cut-out
  • double insulated
  • maximum ambient temperature 40ºC


Back to top

Compliance

  • CEI61/28 - IEC342-1
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked
  • Keymark Approved


Back to top

Range

  • VX15/6M - 6"/15cm cord
  • VX15/6A - 6"/15cm automatic
  • VX23/9M - 9"/23cm cord
  • VX23/9MR - 9"/23cm cord, reversible
  • VX23/9AR - 9"/23cm automatic, reversible
  • VX30/12AR - 12"/30cm automatic, reversible


Back to top

Features

*Plug and socket for easy wiring*5 speed, reversible controller included

Back to top

Installation

*Wall*Window

Back to top

Wiring

*VX15/6M*VX15/6A*VX23/9M extract only*VX23/9M intake only*VX23/9MR (reversing switch not supplied)*VX23/9AR and VX30/12AR with controller supplied*VX23/9AR and VX30/12AR extract only*VX23/9AR and VX30/12AR intake only*VX23/9AR and VX30/12AR with reversing switch (not supplied)

Back to top

Pressure

***

Back to top

Dimensions

*

Back to top

Typical specification

Supply and install a VX23/9AR automatic, reversible window/wall fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation in domestic or commercial premises into solid or cavity walls, single or double glazed windows or in a ceiling. It is to be operated by a remote 5 speed controller (included with the fan) which also allows reversibility and the fan shutters to be left open for natural ventilation. The shutters should be of the silent opening, slow moving type. It should have a quick-fit plug and sicket for easy electrical connection and be double insulated. The fan casing should be formed from high quality, impact resistant, white technopolymer with high mechanical strength and the motor be quiet running and of the shaded pole type mounted on self lubricating, sealed for life bearings for long protected with thermal cut-out. Fan to comply with all current IEE, EC and Building Regulations requirements and be keymark approved.



Back to top

Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH

Tel: +44(0)1494 522333. Fax: +44(0)1494 522337. http://vectaire.co.uk, e-mail: sales@vectaire.co.uk
