Vectaire

Ventilation specialist

Maxi Plus BY

  • with summer bypass and frost-stat
  • efficient, low energy solution to controlling condensation and pollution in residential properties up to 400m2
  • up to 89% heat exchange efficiency
  • variable choice of low (trickle), boost and purge speed at installation
  • for wall, cupboard or loft installation
  • universal handing for models without humidistat
  • very quiet
  • low running costs
  • complies with Building Regulations Parts L1A 2013 and F 2013
  • manufactured in UK to ISO 9001
  • accurate commissioning via optional integral LCD or remote LCD commissioning unit

General

  • up to 230 litre/sec at 50Pa - max 238 litre/sec capacity
  • sfp down to 0.46 W/l/s
  • summer bypass activated when inside temperature is above 24ºC (and outside temperature between 14ºC and 24ºC);
  • frost-stat - proportionally reduces intake motor speed as temperature falls - activated when the outside temperature between +2ºC to -8ºC.
  • run-time and power outage counters
  • easy to install and maintain
  • easy to access G3 filters
  • universal handing for models without humidistat - left or right (see separate diagram for handing on humidistat models)
  • for fitting vertically into lofts, or cupboards - wall fixing bracket supplied
  • variable low (trickle), boost and purge options for each motor
  • boost speed can be activated by a 230V switched live, or a 0-10V connection from:
  • a light switch (if more than one light switch is used, each one must be a double pole switch)
  • Remote humidistat (230V - DRH240)
  • Passive infra red (230V - PIRFF)
  • Thermostat (230V - THM)
  • Remote switch/pull cord - 230V
  • low running costs
  • 5 year warranty - 1 year parts and labour, 4 years parts only

CONTROL FEATURES - STANDARD

  • independent variable speed adjustment for each motor for trickle, boost and purge speeds.
  • adjustable boost speed over-run timer from 0 to 30 minutes.
  • adjustable boost speed delay from 0 to 5 minutes
  • adjustable purge speed over-run timer from 0 to 250 minutes, pre-set to 15 minutes (adjustable at factory).
  • adjustable night time boost and purge inhibitor
  • integral frost-stat - proportionally reduces intake motor speed as temperature falls
  • automatic summer bypass

CONTROL FEATURES - FACTORY SET

  • change of ductwork handing on humidistat version (trip point can be set at manufacture)
  • integral humidistat - proportionally increases motor speeds with rising humidity
  • 0-10V connections can be added for:
  • BMS - for remote motor shut-off
  • CO2 detector
  • home automation system
  • external pre-heater
  • 3 speed selector switch
  • purge speed over-run time
  • holiday mode for reduced speeds when property is unoccupied (factory set option) - default setting is 50% of trickle speed
  • run-time and power outage counters downloadable via QR code.

Vectaire Ltd can supply all accessories for use with these units, including product filters. air filter cassettes, silencers, fire dampers, air valves, ducting, outside grilles and wall cowls. Additionally, Vectaire offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation, commissioning and maintenance of these products



Back to top

Specification

  • casing from steel sheet - epoxy paint finish
  • foam construction lining
  • EPS internal components provide acoustic and thermal enhancement
  • low energy EC brushless motor with single width, single inlet, direct drive, forward curved impellors
  • operates in temperature up to 60ºC
  • easy to access standard, disposable G3 filters
  • counter flow heat exchanger


Back to top

Compliance

  • Part L1A 2013 of Building Regulations for enhanced energy saving capability
  • Part F 2013 of Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant.
  • Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility)
  • manufactured in UK to ISO 9001
  • CE marked
  • SAP PCDB Listed


Back to top

Range

  • Maxi PLUS BY - bypass, universal
  • Maxi PLUS BLH - bypass, left drain, humidistat,
  • Maxi PLUS BRH - bypass, right drain, humidistat
  • Maxi PLUS BYLCD - bypass, universal, integral LCD
  • Maxi PLUS BLHLCD - bypass, left drain, humidistat, integral LCD
  • Maxi PLUS BRH LCD - bypass, right drain, humidistat,integral LCD


Back to top

Features

*Typical Layout

Back to top

Installation

*Handing for Humidistat Models

Back to top

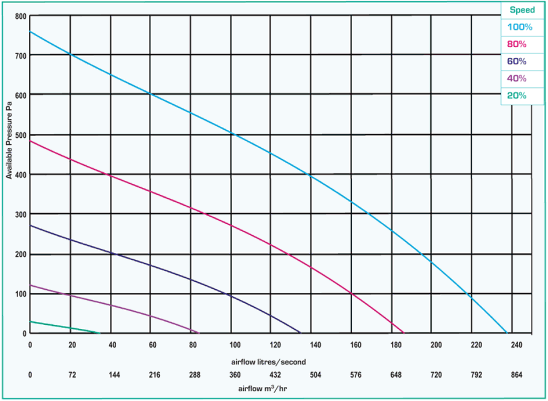

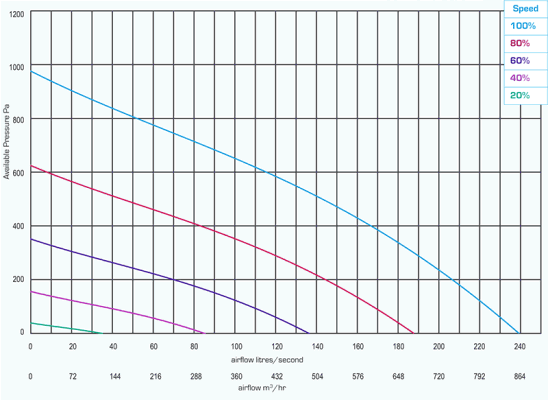

Pressure

*

Back to top

Dimensions

*

Back to top

Typical specification

  • The unit will:
  • be manufactured by Vectaire Ltd.
  • be constructed from steel and the case lined and insulated to ensure extremely low noise levels.
  • be suitable for installation on walls, in cupboards or in lofts.
  • have a condensate tray and drain connections for connection by others.
  • have a high efficiency counterflow heat exchanger with a thermal efficiency of up to 89% .
  • have two low energy, high efficiency EC fan motor assemblies.
  • have a specific fan power from 0.46W/l/s.
  • have two G3 grade filters to protect the heat exchanger.
  • have an automatic summer bypass
  • have an integral frost-stat
  • Units without humidistats shall be capable of being handed for left or right mounting without any on-site assembly.
  • Access to filters shall be from the front by removing two magnetic strips.
  • The unit shall incorporate the following control features:

Standard

  • independent variable speed adjustment for each motor for trickle, boost and purge speeds.
  • adjustable boost speed over run timer from 0 to 30 minutes.
  • adjustable boost speed delay from 0 to 5 minutes
  • adjustable purge speed over run timer from 0 to 250 minutes, preset to 15 minutes (adjustable at factory).
  • adjustable night time boost and purge Inhibitor
  • integral frost-stat - proportionally reduces intake motor speed as temperature falls
  • summer bypass - automatic bypass of heat exchanger in hot weather

Factory Set

  • change of ductwork handing on humidistat version (trip point can be set at manufacture)
  • integral humidistat - proportionally increases motor speeds with rising humidity
  • 0-10V connections can be added for:
    • BMS - for remote motor shut-off
    • CO2 detector
    • home automation system
    • external pre-heater
    • 3 speed selector switch
  • purge speed overrun time
  • holiday mode for reduced speeds when property is unoccupied (factory set option)
  • run -time and power outage counters downloadable via QR code.
  • LCD touch screen (optional) informs user of:
  • operating speed (user adjustable)
  • internal and external temperatures
  • status icons shows which functions currently controlling fan speed
  • date and time (user adjustable)
  • relative humidity level
  • bypass status
  • error and service notifications
  • filter saturation level (reset after changing)
  • user can also set system to holiday mode and set language
  • (Ceiling and void mounted units are provided with a remote LCD touch screen)
  • A Commissioning Kit (or LCD touch screen) will allow the commissioning engineer or installer to set the following parameters:
  • Time and Date
  • Holiday Mode
  • Trickle, boost and purge speeds for each motor
  • Boost speed delay time duration
  • Boost over run time duration
  • Night time boost inhibitor times
  • Touch screen sensitivity calibration
  • Pre-heater threshold (if fitted)
  • Handed installations
  • Activate CO2 detector or home automation system (if fitted)
  • The unit will:
  • be CE marked
  • comply with:
  • Part L1A 2013 of Building Regulations for enhanced energy saving capability
  • Part F 2013 of Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant
  • IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility)
  • be SAP PCDB Listed
  • have a 5 year warranty -1 year parts and labour and 4 years parts only
