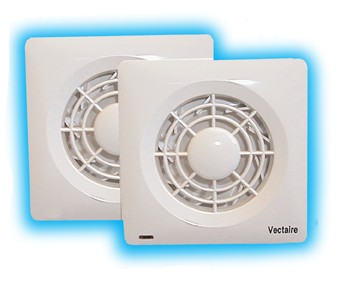

"AMF" Extract Fan

  • High pressure duct fans
  • 3 models
  • IPX4 - Splashproof
  • For toilets, shower-rooms, bathrooms and utility rooms
  • For walls, ceilings or windows (with window kit)
  • Cord (Standard), Timer and Humidity Control
  • Exceeds Building Regulations requirements (including new Document F)

General

  • high pressure duct fan to exhaust air and fumes through long lengths of rigid or flexible ducting
  • hole diameter 4"/10cm
  • integral backdraught shutter
  • anti-vibration gasket
  • for window installation use AWK10/4 or AWK10/4DG and remove backdraught shutter
  • adjustable timer - 3-15 minutes
  • dynamic humidistat with night time setback and anti-hunting device
  • humidistat model with neon to show fan in manual operation
  • easy plasterboard ceiling installation with (optional) Ceiling Ring
  • easy wiring of "T" and "H2R" models with quick fit terminal block
  • whisper quiet operation
  • IPX4 - Splashproof - can safely be installed in Zones I and II


Back to top

Specification

  • casings from shockproof and heat resistant plastics
  • double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
  • motors incorporate thermal cut-out
  • maximum ambient temperature - 40°C


Back to top

Compliance

  • EN60335-2-80
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked


Back to top

Range

  • AMF100T - overrun timer
  • AMF100C - cord or remote
  • AMF100HCT - humidistat, cord, timer, neon
  • AMF100TLV - timer, SELV
  • AMF100CLV - cord or remote, SELV
  • AMF100HCTLV - humidistat, cord, timer, neon, SELV
  • AWK10/4 - window kit
  • AWK10/4DG - window kit
  • AWVK 10/4 - wall vent kit (comprises 14" length of flexi-duct and 4" white fixed grille)
  • ACR4 - ceiling ring


Back to top

Installation

*Wall*Ceiling


Back to top

Wiring

*remote*cord*HCT - cord operated*T and HCT with remote switch


Back to top

Pressure

*


Back to top

Dimensions

*


Back to top

Accessories

*Fixed Grille*Gravity Grille*Wall Vent Kit*Wall Duct Kit*Ceiling Ring*Window Kit


Back to top

Typical specification

Supply and install a Vectaire AMF100T high pressure duct fan for toilets, shower-rooms, bathrooms and utility rooms as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation either in a ceiling, wall or window (with the appropriate accessories). The fan should be complete with an integral timer adjustable from between three and fifteen minutes, have an integral back-draught shutter and an anti-vibration gasket. The fan casing should be made of shockproof and heat resistant plastics, contain a motor with sealed, self-lubricating ball bearings and be protected with a thermal cut-out. The fan should be double insulated, and be suitable for installation for Zones I and II. Fan to comply with all current IEE, EC and Building Regulations requirements for installation into a toilet, shower-room, bathroom or utility room.
