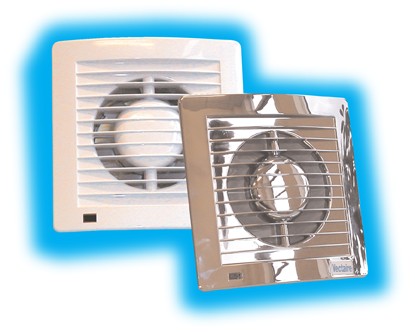

• axial fans to exhaust air and fumes directly outside or through short lengths of ducting
• new, ultra modern, technically innovative
• streamlined for improved air flow
• indicator to show when operating
• incorporates backdraught shutter
• extremely quiet operation
• adjustable timer - 3-25 minutes
• dynamic humidistat with night time set back and anti-hunting device
• wiring can be surface mounted or recessed
• IPX4 - Splashproof - can safely be installed in Zones I and II

• casings from shockproof, high quality technopolymer
• double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
• energy efficient design
• motors incorporate thermal cut-out
• maximum ambient temperature - 40°C

• EN60335-2-80
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• CE marked
• Keymark Approved

White:

• AS10, 12, 15 - standard models
• AS10T, 12T, 15T - overrun timer
• AS10HT, 12HT, 15HT - humidistat, timer

Chromium:

• AS10Cr, 12Cr 15Cr - standard models
• AS10TCr, 12TCr, 15TCr - overrun timer
• AS10HTCr, 12HTCr, 15HTCr - humidistat, timer

Supply and install an AS12Cr axial fan with a chromium front cover as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan is to be suitable for installation either into a ceiling, wall or panel (with the appropriate accessories) There should be a neon on the front of the fan to indicate when it is operating. The fan casing should be made of shockproof, high quality technopolymer, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut-out.. The fan should be double insulated and be suitable for installation into Zones I and II. The fan is to be CE marked and comply with current EC Low Voltage Directive EMC89/336 and with BSEN60529. The fan should finally comply with Building Regulations requirements for installation into a utility room.
