• axial fans to exhaust air and fumes directly outside or through ducting up to 6 metres in length
• advanced aeraulic design for improved pressure characteristics
• AS10Plus fans will extract 20.3 litres/sec (73m3/hr) at a pressure of 20Pa
• streamlined for improved air flow
• indicator to show when operating

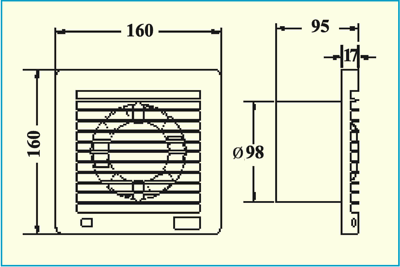

• ultra slim profile for unobtrusive installation
• incorporates backdraught shutter
• innovative impeller design to guarantee low noise levels
• adjustable timer - 3-25 minutes
• dynamic humidistat with night time set back and anti-hunting device

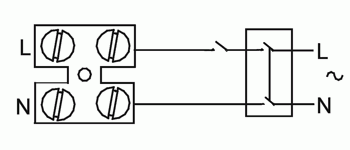

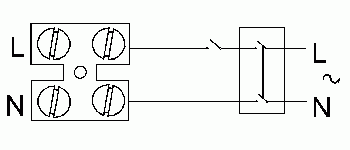

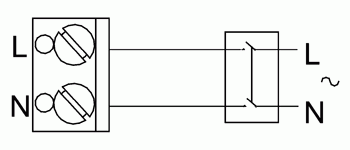

• wiring can be surface mounted or recessed
• IPX4 - Splashproof - can safely be installed in Zones I and II

• casings from shockproof, high quality technopolymer
• double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
• energy efficient design
• motors incorporate thermal cut-out
• maximum ambient temperature - 40°C

• EN60335-2-80
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• CE marked
• Keymark Approved

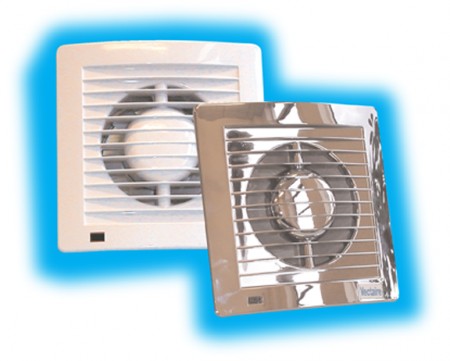

White:

• AS10Plus - standard models

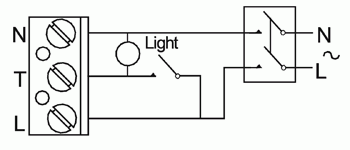

• AS10TPlus - overrun timer
• AS10HTPlus - humidistat, timer
• AS10PIRPlus - passive infra red, timer, neon

Chromium:

• AS10CrPlus - standard models
• AS10TCrPlus - overrun timer
• AS10HTCrPlus - humidistat, timer
• AS10PIRCrPlus - passive infra red, timer, neon

Supply and install an AS10TPlus axial fan with integral over-run timer (adjustable between 3 and 25 minutes) as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan is to be suitable for installation either into a ceiling, wall or panel (with the appropriate accessories), and have the capability of being ducted for up to 6m. There should be a neon on the front of the fan to indicate when it is operating. The fan casing should be made of shockproof, high quality technopolymer, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut-out. The fan should be double insulated and be suitable for installation into Zones I and II. The fan is to be CE marked and comply with current EC Low Voltage Directive EMC89/336 and with BSEN60529. The fan should finally comply with Building Regulations requirements for installation into a toilet, bathroom or shower room.
