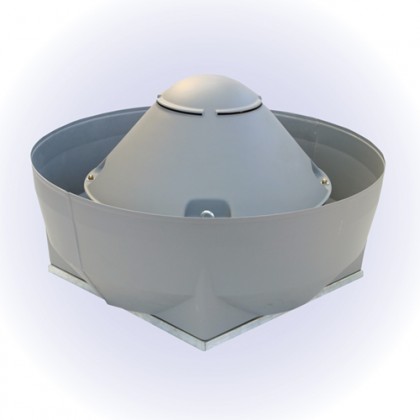

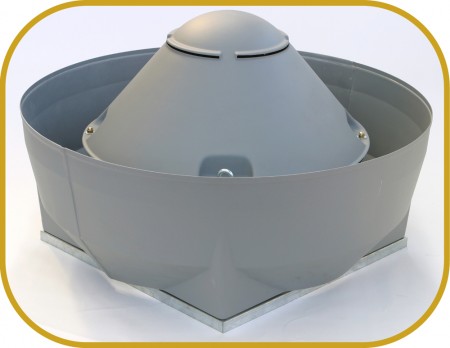

"CRV" Centrifugal Roof Fan

Vertical discharge fans for direct or ducted ventilation in residential, commercial and industrial buildings
Designed for easy installation with high efficiency and low noise levels
Motor out of airstream allowing extraction of clean or slightly dusty air with a maximum temperature of up to 60ºC
11 sizes - from 250 to 800 mm
Airflow from 1080 to 16200 m3/hr
Base frame and dynamically balanced backward curved impeller in galvanised steel
Protection guard in steel rod resistant to atmospheric corrosion
Outer deflector and upper cover in ABS with slots for motor cooling
Single or three phase , IP55, Class F suitable for continuous running
Four and six pole motors
Models with flameproof motor (ATEX)
Inlet Protection Guard

“CRV” Vertical Discharge Roof Mounted Centrifugal Fan Also available:
