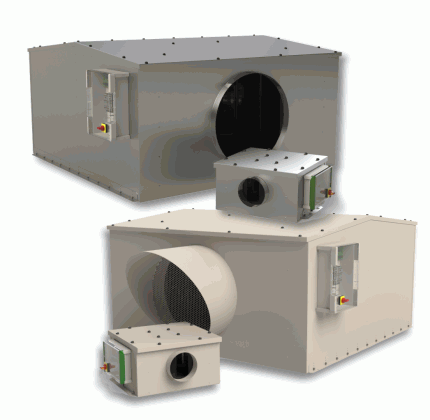

• Units can be mounted vertically or horizontally.
• Top or bottom access options available
• Bottom inlet also available on request.
• Roof mounted models with removable discharge cowl
• All units are fitted with a pre-wired Auto Changeover Panel saving time and money on site.
• The ACOP has comprehensive features as standard.
  • VFC BMS enable
  • VFC BMS boost
  • Fan fault BMS link
  • Remote 0-10V speed control
  • Duty Share (adjustable)
  • Run on timer for boost (0-20 minutes)
  • Trickle and boost setting
  • P.I.R. enabled Boost

Available accessories

• Silencers
• AV mounts
• Duct clamps

• Units constructed from galvanised steel 0.9mm to 1.2 mm depending on the model
• Roof mounted models powder coated.
• Units are lined with 20mm Barafoam "O" class liner for reduced noise breakout
• A 6mm barrier mat layer incorporated in the liner significantly reduces noise breakout

ErP compliant 2009/125/EC

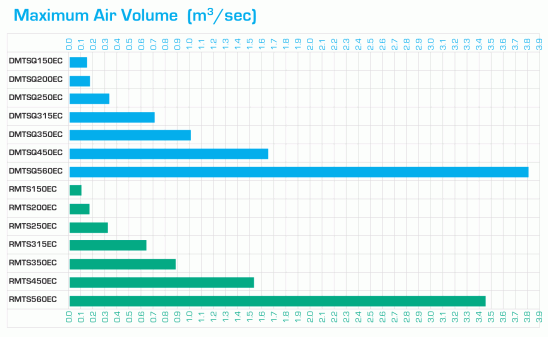

DMTSQ 150-EC DMTSQ 200-EC DMTSQ 250-EC DMTSQ 315-EC DMTSQ 350-EC DMTSQ 450-EC DMTSQ 560-EC

RMTS 150-EC RMTS 200-EC RMTS 250-EC RMTS 315-EC RMTS 350-EC RMTS 450-EC RMTS 560-EC
