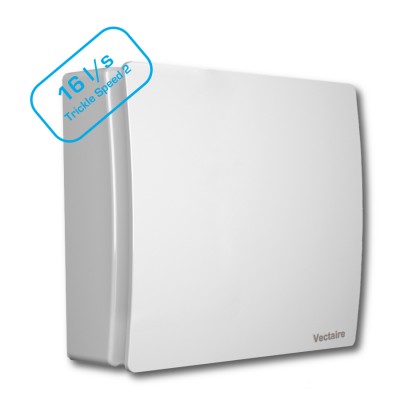

• SAP PCDB Listed (dMEV) ultra modern, technically innovative high performance, low noise level fan
• exhausts directly to the outside or through longer lengths of ducting (can be installed in window with additional kit)
• runs continuously at pre-selected choice of two speeds (fixed at installation)

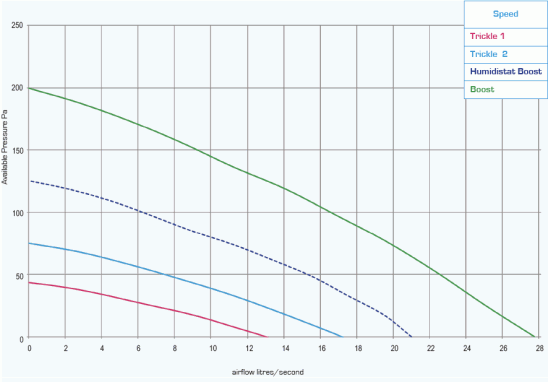

• Speed 1 operates at 13.1 l/s (factory set)
• Speed 2 operates at 17 l/s
• “HDT” and “HDTLV” models boost at 21 l/sec via integral humidistat when humidity exceeds pre-set level
• anti-vibration gasket
• washable polypropylene filter included
• speed boosted to maximum (27.8 l/s) using integral pull cord or by:
  • remote switch/light switch
  • PIR sensor
  • DRH240 (dynamic remote humidistat)
• energy saving ventilation
• extremely low running costs
• low carbon footprint
• 5 year warranty

• Vectaire Ltd can supply all accessories for use with these units, including fire dampers, air valves, ducting, outside grilles, wall cowls and window kits. Additionally, Vectaire offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation, commissioning and maintenance of these products
• These fans are NOT suitable for use with Gravity Grilles. They should be installed using either Cowls or Fixed Grilles. Only approved accessories should be used.

• shockproof, high quality technopolymer casing
• designed using latest wind tunnel technology and CFD simulations
• profile increases the fluid dynamics
• EC induction motor with thermal protection
• 43,000 hour life motors with maintenance free and long life ball bearings
• operates in ambient temperatures up to 40ºC
• double insulated - no earth required
• IPX4 - Splashproof rated - can safely be installed in Zones I and II

• Building Regulations for enhanced energy saving capability
• Building Regulations for reliable, efficient ventilation
• EU RoHS Directive Compliant.
• Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
• CE marked
• SAP PCDB Listed
• Energy Saving Trust Best Practice Compliant

• ELX1003 - 3 speed, continuous running, cord or remote
• ELX1003DT - 3 speed, continuous running with comfort timer (timer does not activate unless fan has been running for 2 minutes to avoid unnecessary night-time operation) and pull-cord
• ELX1003HDT - 3 speed, continuous running, with comfort timer, humidistat and pull-cord, special humidity boost and data logging facility
• ELX1003LV - 3 speed, continuous running with pull-cord - LOW VOLT (SELV)
• ELX1003DTLV - 3 speed, continuous running, with comfort timer, overrun timer and pull-cord LOW VOLT (SELV)
• ELX1003HDTLV - 3 speed, continuous running, with comfort timer, humidistat and pull-cord, special humidity boost and data logging facility - LOW VOLT (SELV)

• ELX1003-F - Elix Filter
• PLT/EL - EL & ELX Adaptor Plate
• PLT/EL/UN - EL & ELX Adaptor Plate - Universal Model
• Elix Window Kit

• THESE FANS SHOULD BE INSTALLED WITH EITHER A FIXED GRILLE OR COWL

The unit will:

• be supplied by Vectaire Ltd
• be a high performance, three speed centrifugal fan
• be suitable for ALL domestic wet rooms
• be suitable for installation into wall, ceiling or window with additional kit
• have an air intake around the whole perimeter

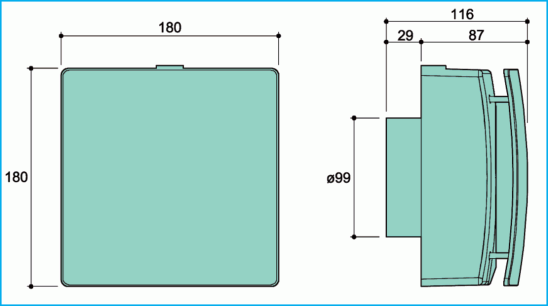

• have a footprint no larger than 180 mm square
• the casing should be constructed from shock-proof, high quality technopolymer.
• will have been designed using wind tunnel technology and CFD simulations
• will have a profile which increases the fluid dynamics
• will run continuously at pre-selected choice of two speeds (fixed at installation):
  • Speed 1 to operate at 13.1 l/sec
  • Speed 2 to operate at 17 l/sec
  • “HDT” and “HDTLV” boost at 21 l/sec via integral humidistat when humidity exceeds pre-set level

• speed can be boosted to maximum (27.8 l/sec) using integral pull cord or by:
  • remote switch/light switch
  • PIR sensor
  • DRH240 (dynamic remote humidistat)
• have an anti-vibration gasket
• washable polypropylene filter included
• low noise levels and optimum performance
• have EC induction motor with thermal protection
• 43,000 hour life motors with maintenance free and long life ball bearings
• thermal overload protection
• operates in temperature up to 40ºC

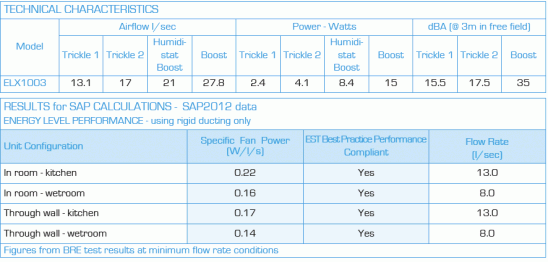

• have a specific fan power from 0.14 W/l/s.
• be IPX4 (splashproof) rated for safe installation in Zones I and II

The unit will:

• be CE marked
• comply with:
  • Building Regulations for enhanced energy saving capability
  • Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant
  • IEC60335-2-80, LVD2006/95/CE and
  • EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
• be SAP PCDB Listed
• be Energy Saving Trust Best Practice Compliant
• have a 5 year warranty

• Please contact your Vectaire representative via Head Office on 01494 522333 for any assistance.

• An electronic copy of this specification is available on request
