Elix Intermittent
- high performance, low carbon centrifugal fans
- control condensation
- standard, timer and humidistat models
- powerful low profile units
- wall or ceiling
- low noise levels
- low running costs
- for toilets, bathrooms and shower-rooms
- complies with Building Regulations Parts L1A 2013 and F 2013
General
- exhausts directly to the outside or through long lengths of ducting (up to 15m)
- easy and economical to install and maintain
- suitable for toilets and shower-rooms
- backdraught shutter
- anti-vibration gasket
- easily removable, washable polypropylene filter
- patented anti-turbulence deflectors ensure very low noise levels and optimum performances
- energy saving ventilation
- extremely low running costs
- low carbon footprint
- 2 year warranty
Back to top
Specification
- shockproof, high quality technopolymer casing
- designed using latest wind tunnel technology and CFDsimulations
- motor with thermal protection
- 30,000 hour life motors with maintenance free and long life ball bearings
- operates in ambient temperatures up to 40OC
- double insulated - no earth required
- IPX4 Splashproof rated - can safely be installed in Zones I and II
Back to top
Compliance
- Part L1A 2013 of Building Regulations for enhanced energy saving capability
- Part F 2013 of Building Regulations for reliable, efficient ventilation
- EU RoHS Directive Compliant.
- Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
- CE marked
Back to top
Range
- ELX100 - Standard
- ELX100T - with overrun Timer
- ELX100HT - with Humidistat and Timer
N.B timer adjustable from 3-25 mins
Back to top
Elix with Filter
Elix Section

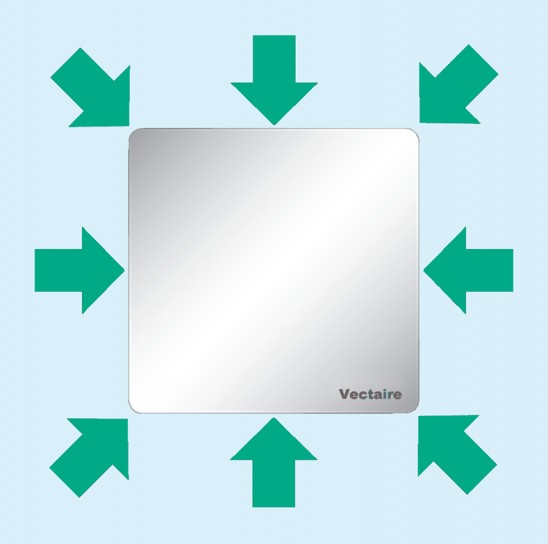

Elix Lateral Intake

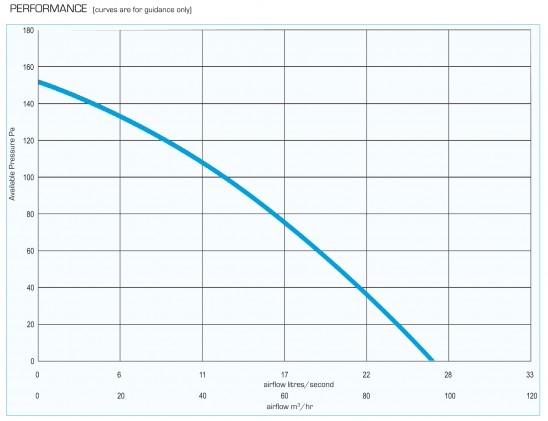

Performance

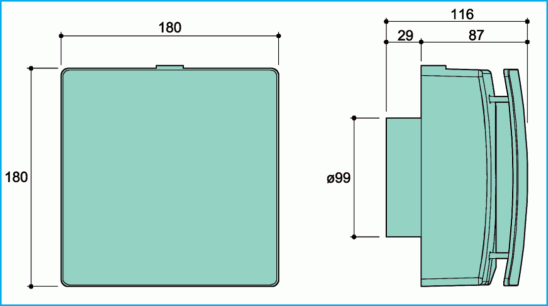

ELX100 Dimensions
Download
