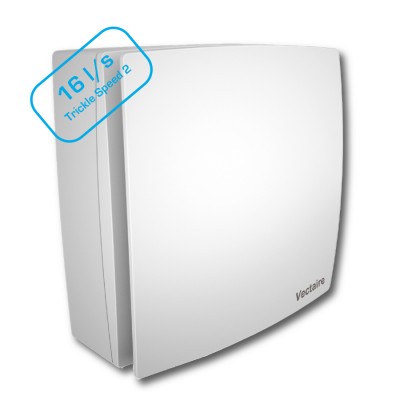

Elprex 16

exhausts directly to the outside or through long lengths of ducting (up to 15m)
sfp down to 0.39 W/l/s
easy and economical to install and maintain
runs continuously at trickle speed with choice of 3 boost speeds (fixed at installation)
Trickle speed 1 operates at 16 l/s (factory set)
Boost speed 2 operates at 30 l/s
Boost speed 3 operates at 45 l/s
Boost speed 4 operates at 60 l/s
speed boosted to maximum using integral pull cord or by:
- remote switch/light switch
- PIR sensor
- DRH240 (dynamic remote humidistat)
ELP2204HDT operates at Speed 2 if boost speed is automatically started by the integral humidistat when relative humidity reaches pre-set level. Fan runs at this sped until excess humidity dispersed. It then reverts to Trickle Speed 1. Boost speed can also be boosted manually by remote switch/light switch/PIR sensor or remote humidistat.
anti-vibration gasket
robust and anti-reverse (removable) backdraught shutter
energy saving ventilation
extremely low running costs
low carbon footprint
2 year warranty

Building Regulations for enhanced energy saving capability
Building Regulations for reliable, efficient ventilation
EU RoHS Directive Compliant.
Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interfer-ence and electro-magnetic compatibility
CE marked

MODELS AVAILABLE:

ELP2204 - 4 speed, continuous running, cord or remote
ELP2204DT - 4 speed, continuous running with comfort timer (timer does not activate unless fan has been running for 2 minutes to avoid unnecessary night-time operation) and pull-cord
ELP2204HDT - with comfort timer, humidistat and pull-cord
ELP2204-DATA - 4 speed, continuous running with pull-cord and integral data logger
ELP2204DT-DATA - with comfort timer, pull-cord and integral data logger
ELP2204HDT-DATA - with comfort timer, humidistat, pull-cord and integral data logger

N.B timer adjustable from 0-30 mins

THESE FANS SHOULD BE INSTALLED WITH EITHER A FIXED GRILLE OR COWL

The unit will:

be supplied by Vectaire Ltd
be a high performance, four speed centrifugal fan
be suitable for kitchens
be suitable for installation into wall or ceiling into single or multiple ducts either surface mounted or built-in (with the optional kit)
have an air intake around the whole perimeter
the casing should be constructed from shock-proof, high quality technopolymer.
will run continuously at the factory set trickle speed of 16 l/s.
boost speed can be from a choice of three:
- boost speed 2 operates at 30 l/s
- boost speed 3 operates at 45 l/s
- boost speed 4 operates at 60 l/s
- remote switch/light switch
- PIR sensor
- DRH240 (dynamic remote humidistat)
- 30,000 hour life motor with maintenance free and long life ball bearings
- thermal overload protection
- operate in temperature up to 40ºC
- have a specific fan power from 0.09 W/l/s.
- be IPX4 (splashproof) rated for safe installation in Zones I and II
boost speed can be obtained by using integral pull cord or by:
will have a robust and anti-reverse (removable) back-draught shutter, an anti-vibration gasket and an easily removable and washable polypropylene filter
will have an sfp of no more than 0.47 w/l/s at maximum power and must not exceed 8.7w power consumption at its lowest (trickle) speed.
have a motor with thermal protection

The unit will:
- be CE marked
- comply with:
Building Regulations for enhanced energy saving capability
Building Regulations for reliable, efficient ventilation
EU RoHS Directive Compliant
IEC60335-2-80, LVD2006/95/CE and
EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
2 year warranty

Please contact your Vectaire representative via Head Office on 01494 522333 for any assistance.
