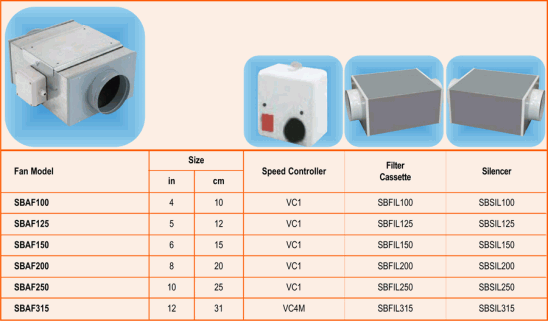

"SBAF" - Slim Acoustic Fan
- 6 models from 100mm to 315mm
- Airflow from 230 to 1800 m3/hr (0.064 to 0.5 m3/sec)
- 2-speed versions also available
General
- 6 models from 100mm to 315mm
- Airflow from 230 to 1800 m3/hr (0.064 to 0.5 m3/sec)
- Galvanised steel cabinet lined with acoustic insulation
- Speed controllable
- Easy to install
- External connection box can be moved to opposite side of fan if required
- Easily accessible panel for service and maintenance
- Thermal overload protection
- Motor - external rotor with IP54 protection
- External connection box - IP55 protection
- Backward curved impeller with high efficiency and low noise level
- Includes fixing bracket
- Spigots allow easy and secure duct fixing
- Can be installed against ceiling or wall
- Special "Slim box" silencers and air filter cassettes
- 2-speed versions also available
Back to top
Compliance
- EN60335-2-80
- EN60335-2-31 ("P"Models only)
- EC Low Voltage Directive 73/23-93/68
- EC Directive EMC89/336
- CE marked
- Key marked
