ACFS In-Line Centrifugal Fans
- Acoustic cabinet fans
- High pressure centrifugal fans
- 7 models
- Airflow from 0.109 to 1.104m3/sec (392 to 3974m3/hr)
General
- 7 models from 125 to 500mm
- airflow from 392 to 3974m3/hr
- speed controllable
- auto reset, thermal cut-out protection
- integral mounting points for easy installation
- may be mounted vertically or horizontally (with access either on top or bottom to be confirmed with order)
- motor/impeller assembly mounted on removable plate for easy maintenance and cleaning
- fans are pre-wired to a single external terminal box to ensure simple and quick installation
- extremely low noise levels
- max air temperature 40ºC
- all models single phase, 230v
- twin fan version also available
Back to top
Specification
- galvanised steel cabinet with acoustic lining
- acoustic lining 25mm thick, high density, non-toxic and Class "O" flame retardant
- auto reset, thermal cut-out protection
- maximum air temperature 40ºC
Back to top
Range
- ACFS125 - 12cm/5", single phase
- ACFS150 - 15cm/6", single phase
- ACFS200 - 25cm/8", single phase
- ACFS250 - 25cm/10", single phase
- ACFS315 - 31cm/12", single phase
- ACFS400 - 40cm/16", single phase
- ACFS500 - 50cm/20", single phase
Back to top

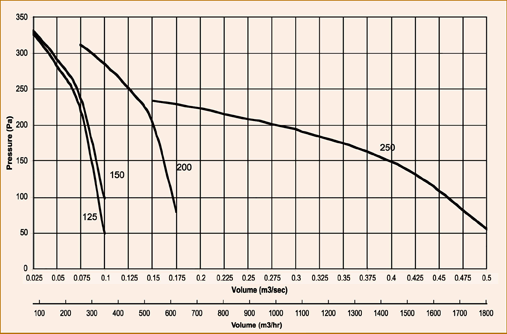

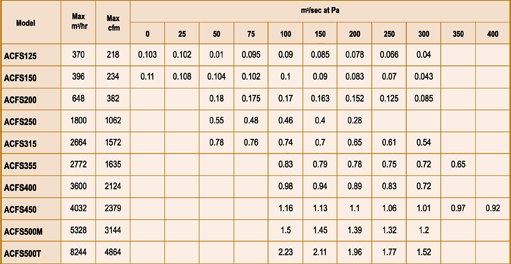

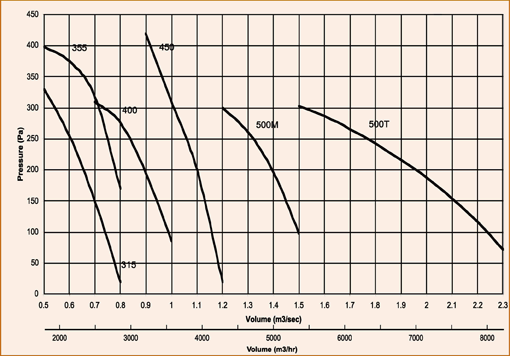

Performance

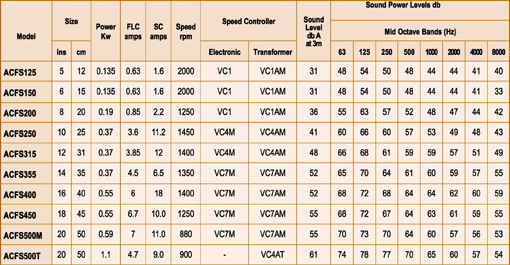

TechnicalAccessories
Air Filter Cassette
Duct Heaters
Speed Controllers
Flexible Duct Connectors
Silencers
Anti Vibration MountsBack to top
Download
