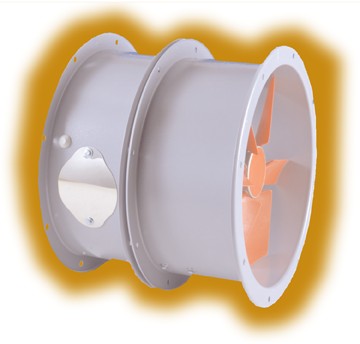

"LCA" Long Cased Axial

  • Long cased axial fans for industrial/commercial use
  • From 310mm to 1250mm diameter
  • Single or Three Phase
  • 2, 4, 6 and 8 pole motors
  • Speed controllable
  • Full range of accessories
  • ErP Directive Compatible

General

  • For installation into ducting.
  • For industrial and commercial installations.
  • High performance rates
  • Suitable for high volume, low pressure ventilation systems.
  • Fan available in short-cased version.
  • Can be used with speed controller
  • ATEX and High Temperature models available


Back to top

Specification

  • Cylindrical case in epoxy painted steel plate with flange at both ends
  • Blade in reinforced polypropylene (optional die-cast aluminium blade available)
  • Blade hub in die-cast aluminium
  • IP55, Class F motor insulation
  • Suitable for operation in air temperatures between -10ºC and +50ºC
  • IP55 protection
  • Please contact Vectaire for detailed specification of these products


Back to top

Compliance

  • IEC 60034
  • IEC 60072
  • EMC 2004/108/CE
  • LVD 2006/95/CE
  • EN ISO 5801
  • CE marked
  • ErP Directive Compliant


Back to top

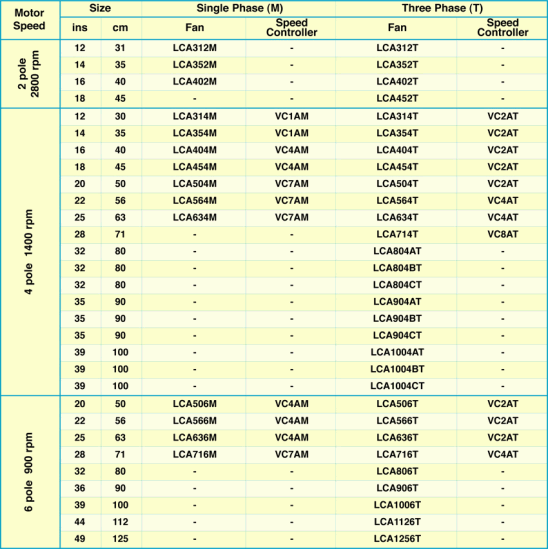

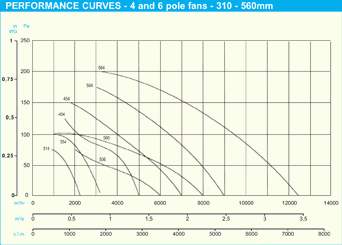

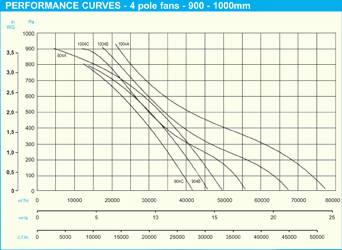

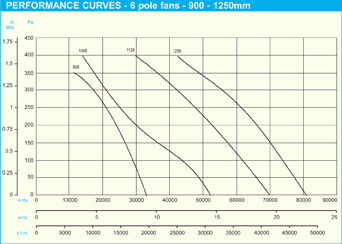

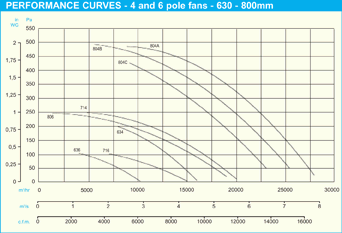

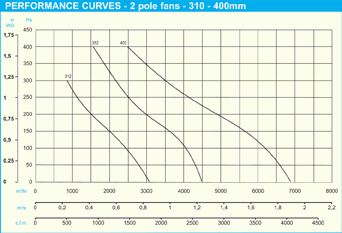

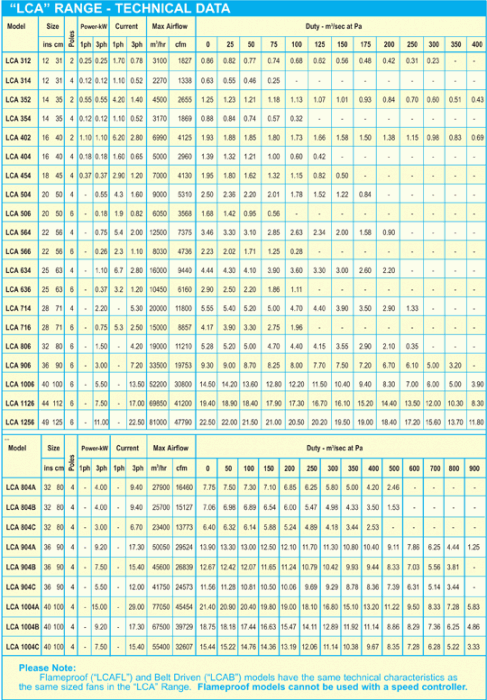

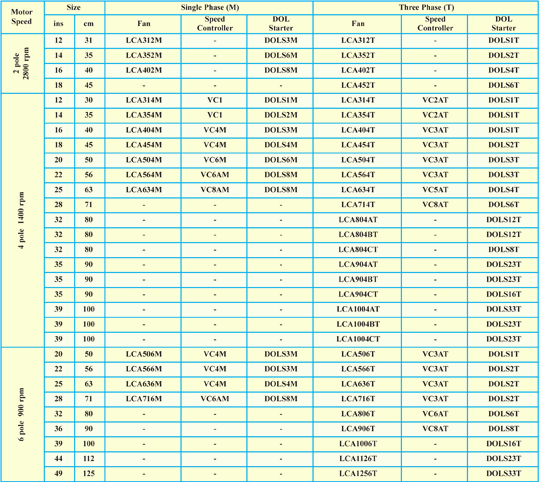

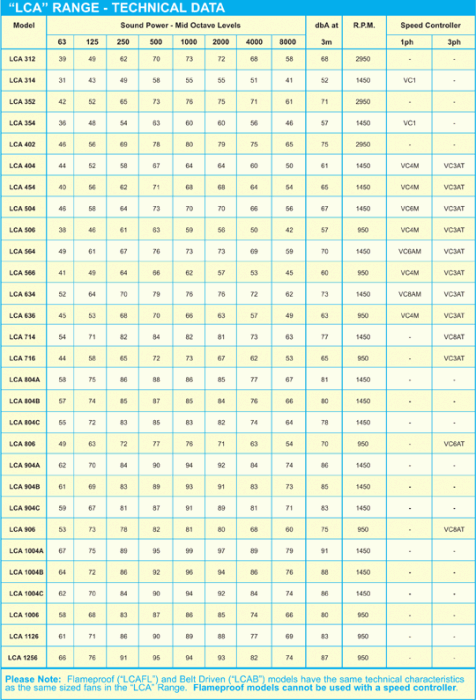

Range

  • LCA314M - LCA404M: 4 pole, single phase models
  • LCA312T - LCA452T: 2 pole, three phase models
  • LCA314T - LCA1004GT: 4 pole, three phase models
  • LCA506T - LCA1256CT: 6 pole, three phase models
  • LCA508T - LCA1258CT: 8 pole, three phase models
  • LCAFL - ATEX models with explosion-proof motor for installation in Zone I areas
  • LCAHT - high temperature version for Emergency Smoke Extraction ("Somkex"®)
  • LCAHP - high performance models in 13 diameters, 2, 4, 6 and 8 pole motors with 3, 6 or 9 blades.
  • LCAP - portable cooling fans


Back to top

Features

*LCAHP*LCAP


Back to top

Installation

*


Back to top

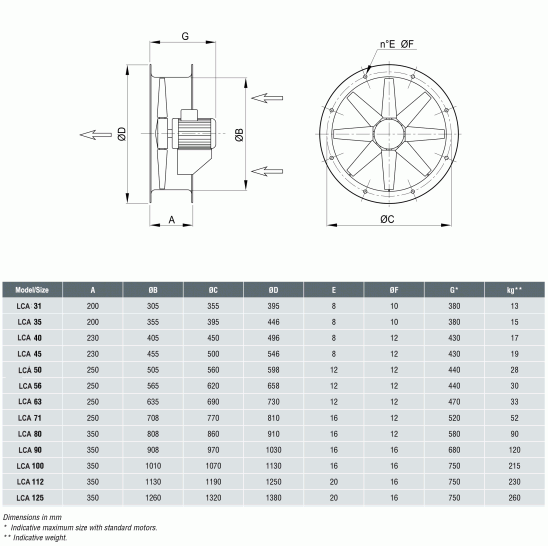

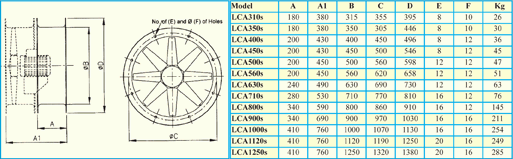

Dimensions

*


Back to top

Accessories

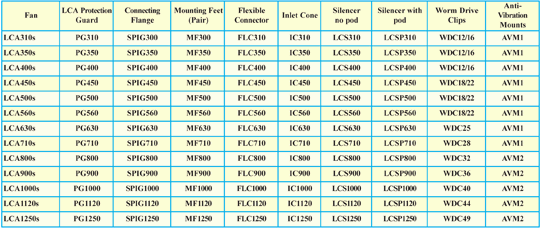

**Protection Guard*Flexible Connector*Silencer*Worm Drive Clip*Anti Vibration Mounts*Spigot Plate


Back to top

Typical specification

Supply and install a LCA404M 400mm, 4 pole, single phase long cased axial fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation in commercial premises in a high volume, low pressure ventilation system. It is to be caplable of being operated with a remote speed controller. The fan casing should be in epoxy painted steel plate with a flange at both ends. The blade should be in reinforced polypropylene (optional die-cast aluminium blade available). The blade hub should be in die-cast aluminium, it should have Class F motor insulation and be suitable for operation in air temperatures between -10ºC and +50ºC. It should also have IP55 protection. The fan to comply with all current IEE, EC and Building Regulations requirements and be keymark approved.
