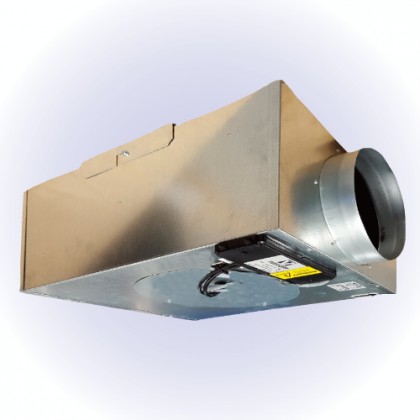

Microbox 200/2DC

  • efficient, low energy solution to controlling condensation and pollution in residential properties up to 335m²
  • variable choice of low (trickle), boost and purge speed at installation
  • for ceiling, loft or void installation
  • powerful low profile unit
  • requires only one discharge grille
  • low noise levels
  • low running costs
  • humidistat model available
  • complies with Building Regulations
  • manufactured in UK to ISO 9001:2015 and 14001:2015
  • SAP PCDB Listed

General

  • up to 233 litre/sec at 50Pa - max 251 litre/sec capacity
  • sfp down to 0.27 W/l/s
  • easy and economical to install and maintain
  • for ceiling, loft or void in-line installation
  • can be angled horizontally or vertically
  • variable low (trickle), boost and purge options
  • boost speed can be activated by a 230V switched live from:
  • a light switch (if more than one light switch is used, each one must be a double pole switch)
  • Remote humidistat (230V - DRH240)
  • Passive infra red (230V - PIRFF)
  • Thermostat (230V - THM)
  • Remote switch/pull cord - 230V
  • very low noise levels
  • low running costs
  • 3 year warranty - 1 year parts and labour, 2 years parts only

CONTROL FEATURES

  • variable adjustment - trickle, boost and purge speeds set at installation
  • boost setting (via switched live)
  • integral, adjustable over-run timer - adjustable from 0-30 minutes set at installation


Back to top

Specification

  • powerful, low profile unit, 232mm deep
  • casing from galvanised sheet steel
  • thermal overload protection
  • pre-wired for easy electrical connection
  • service and maintenance panel easily accessible
  • low energy EC external rotor motor with sealed for life bearings and dynamically balanced backward curved impellors
  • operates in temperature up to 60ºC
  • complete with mounting bracket and anti-vibration plate
  • IPX4 rated


Back to top

Compliance

  • Building Regulations for enhanced energy saving capability
  • Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant.
  • Complies with IEC60335-2-80, LVD2006/95/CE
  • EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
  • manufactured in UK to ISO 9001:2015 and 14001:2015
  • CE marked
  • SAP PCDB Listed


Back to top

Range

  • MBOX200/2DC - standard model
  • MBOX200/2DCH - with integral humidistat


Back to top

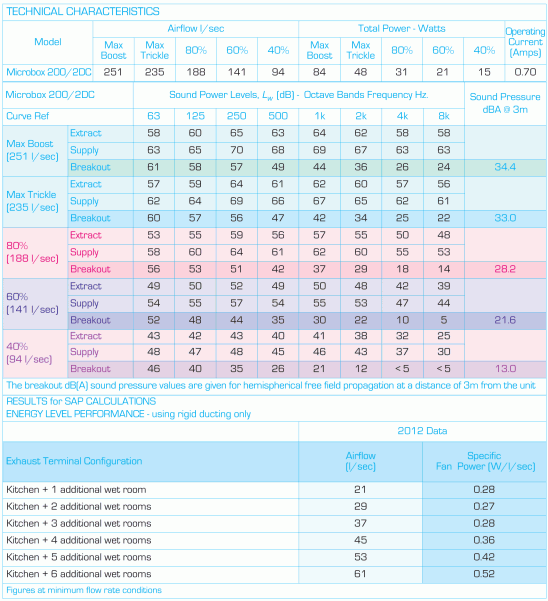

Features

*


Back to top

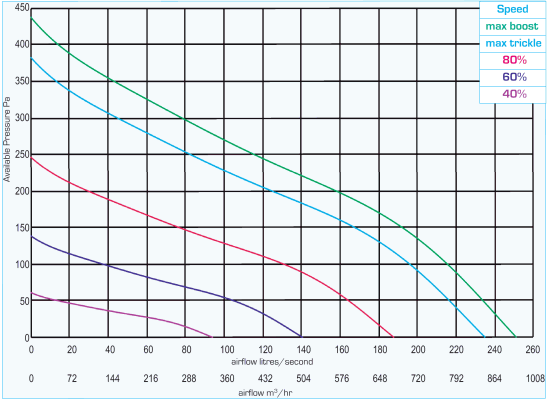

Pressure

*


Back to top

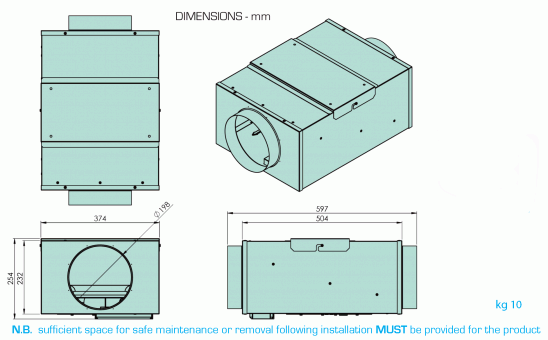

Dimensions

*


Back to top

Typical specification

  • The unit will:
  • be manufactured by Vectaire Ltd.
  • be a compact, low profile unit - 232 mm deep
  • be constructed from sheet steel
  • be suitable for installation in-line in ceilings, voids or lofts either horizontally or vertically in areas up to 335m2
  • be pre-wired for easy electrical connection
  • have low energy EC external rotor motor with sealed for life bearings.
  • backward curved impellors dynamically balanced
  • thermal overload protection
  • service and maintenance panel easily accessible
  • complete with mounting bracket and anti-vibration plate
  • operates in temperature up to 60ºC
  • have a specific fan power from 0.27 W/l/s.
  • boost speed can be activated by a 230V switched live from:
  • a light switch (if more than one light switch is used, each one must be a double pole switch)
  • remote humidistat (230V - DRH240)
  • passive infra red (230V - PIRFF)
  • thermostat (230V - THM)
  • remote switch/pull cord - 230V
  • have a purge connection
  • be IPX4 rated
  • The unit shall incorporate the following control features:

Standard

  • variable adjustment - trickle and boost speeds set at installation
  • boost setting (via switched live)
  • integral, adjustable over-run timer - adjustable from 0-30 minutes set at installation
  • The unit will:
  • be CE marked
  • comply with:
  • Building Regulations for enhanced energy saving capability
  • Building Regulations for reliable, efficient ventilation
  • EU RoHS Directive Compliant
  • IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
  • Be SAP PCDB Listed
  • manufactured in UK to ISO 9001:2015 and 14001:2015
  • 3 year warranty - 1 year parts and labour, 2 years parts only
