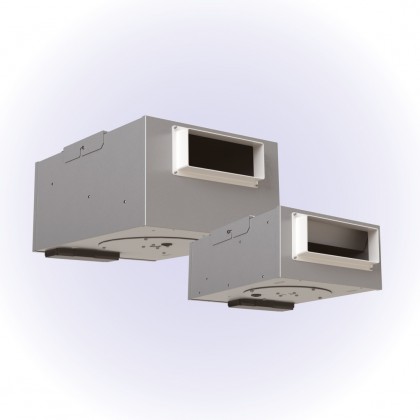

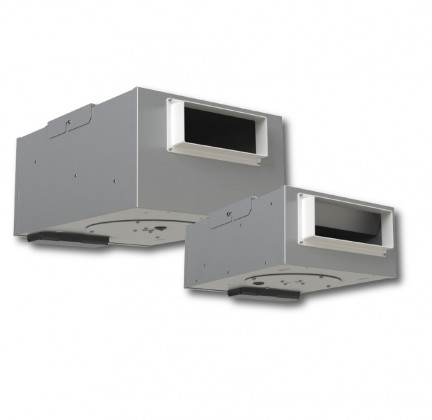

Purge Box Units

  • Vectaire Purge-Box units are designed to provide purge ventilation as required by Building Regulations, Part F 2010, Appendix B
  • they are an efficient, low energy solution to creating a healthier ambient by removing humidity, poor quality air, and stale odours QUICKLY in residential dwellings
  • Vectaire Purge-Box units can be used as stand alone units or in conjunction with a Vectaire MVHR or MEV system
  • available in two capacities
  • the two sizes of Vectaire Purge-Box will help tackle overheating issues (Building Regulations, Part O)
  • variable adjustment - trickle, boost and purge speeds set at installation
  • for ceiling, loft or void mounting
  • Vectaire Purge Boxes are easy to install using 220mm x 90mm ducting
  • low profile units
  • require only one discharge grille
  • low sound levels
  • low running costs
  • manufactured in UK to ISO 9001:2015 and ISO 14001:2015

General

  • Purge-Box 100 - up to 188 l/s at 50Pa - max 200 l/s capacity - sfp down to 0.20 W/l/s
  • Purge-Box 200 - up to 233 l/s at 50Pa - max 251 l/s capacity - sfp down to 0.27 W/l/s
  • powerful performance levels for rapid purge ventilation
  • easy and economical to install and maintain
  • for ceiling, loft or void in-line installation
  • can be angled horizontally or vertically
  • easy connection to 220mm x 90mm flat ducting
  • variable boost speeds can be activated by a 230V switched live from:
    • A light switch (if more than one light switch is used, each one must be a double pole switch)
    • Remote humidistat (230V - DRH240)
    • Passive infra red (230V - PIRFF)
    • Thermostat (230V - THM)
    • Remote switch/pull cord - 230V
  • very low sound levels
  • low running costs
  • 3 year warranty - 1 year parts and labour, 2 years parts only

CONTROL FEATURES

  • 3 integrated, fully adjustable speeds
  • integral, adjustable over-run timer - adjustable from 0-30 minutes set at installation

Vectaire Ltd can supply all ancillaries for use with these units, including product filters. air filter cassettes, silencers, fire dampers, air valves, ducting, outside grilles and wall cowls. Additionally, Vectaire offers a design service to ensure that the unit installed is the best possible to provide efficient, effective, low energy and low running cost ventilation. Vectaire can also organise installation, commissioning and maintenance of these products.



Back to top

Specification

  • compact, low profile units
  • casing from galvanised sheet steel
  • pre-wired for easy electrical connection
  • service and maintenance panel easily accessible from underneath
  • low energy, high efficiency EC external rotor motor with sealed for life bearings and dynamically balanced backward curved impellors
  • operates in temperature up to 60ºC
  • complete with mounting bracket
  • IPX4 rated


Back to top

Compliance

  • Building Regulations, Part F 2010, Appendix B
  • The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019
  • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
  • Electromagnetic Compatibility Regulations 2016
  • Electrical Equipment (Safety) Regulations 2016
  • manufactured in UK to ISO 9001:2015 and ISO 14001:2015
  • UKCA marked


Back to top

Range

  • PURGE-BOX100 - max 200 l/s capacity
  • PURGE-BOX 200 - max 251 l/s capacity
