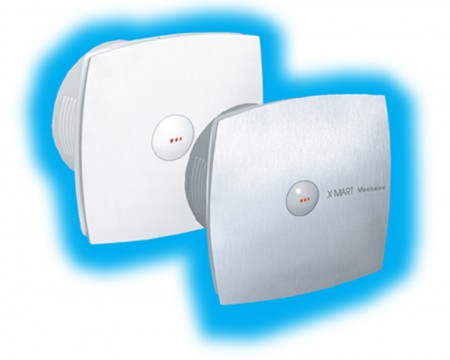

"X-Mart" Automatic Extract Fans

  • Deluxe low profile axial fans with Automatic Shutter
  • Stainless steel or white
  • IPX4 - Splashproof
  • For toilets, shower-rooms, and bathrooms
  • For walls, ceilings or windows (with window kit)
  • Standard, Timer and Humidity Control
  • Exceeds Building Regulations requirements (including new Document F)

General

  • axial fans to exhaust air and fumes directly outside or through short lengths of ducting
  • new, technically innovative, to complement modern decor
  • unique opening front shutter - stops backdraught when closed
  • indicator light to show when operating
  • front easily removed (no screws) for cleaning
  • quick fit installation system for walls
  • easy plasterboard ceiling installation with (optional) Ceiling Ring
  • window installation requires window kit
  • protection against backdraughts
  • quiet operation
  • adjustable timer - 3-15 minutes
  • dynamic humidistat with night-time set back and anti-hunting device
  • IPX4 - Splashproof - can safely be installed in Zones I and II


Back to top

Specification

  • casings from shockproof and heat resistant plastics
  • double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
  • motors fitted with thermal safety cut-out
  • maximum ambient temperature - 40°C


Back to top

Compliance

  • EN60335-2-80
  • EC Low Voltage Directive 73/23-93/68
  • EC Directive EMC89/336
  • CE marked


Back to top

Range

White

  • XM 10A, 12A, 15A - automatic shutter
  • XM 10AT, 12AT, 15AT - automatic shutter and overrun timer
  • XM 10AH, 12AH, 15AH - automatic shutter, humidity control and overrun timer

Stainless Steel

  • XM 10ASS, 12ASS, 15ASS - automatic shutter
  • XM 10ATSS, 12ATSS, 15ATSS - automatic shutter and overrun timer
  • XM 10AHSS, 12AHSS, 15AHSS - automatic shutter, humidity control and overrun timer


Back to top

Features

*Unique opening front shutter*Easy electrical connection - just lift lid*Quick fix wall installation (no screws)*Front easily removed for cleaning - no screws


Back to top

Installation

*Wall*Wall - Quick Fix*Ceiling*Window


Back to top

Wiring

*Standard*Timer*Humidistat & Timer


Back to top

Pressure

*XM10 Curves


Back to top

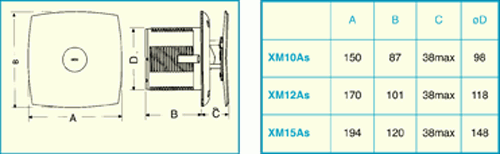

Dimensions

*XM10A Dims


Back to top

Accessories

*Fixed Grille*Gravity Grille*Wall Vent Kit*Wall Duct Kit*Ceiling Ring*Window Kit


Back to top

Typical specification

Supply and install an XM12AHSS axial fan with a stainless steel front cover as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan is to be suitable for installation either into a ceiling, wall or window (with the appropriate accessories), and be complete with an integral, adjustable, dynamic humidistat, an integral adjustable timer and a unique opening front cover. There should be a neon on the front of the fan to indicate when it is operating. The fan casing should be made of shockproof and heat resistant plastic, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut-out. The fan should be double insulated and be suitable for installation into Zones I and II. The fan is to be CE marked and comply with current EC Low Voltage Directive EMC89/336 and with BSEN60529. The fan should comply with Building Regulations requirements for installation into a utility room.
